PH3 phosphine sensor FumiTrack

monitoringfor food storageUSB

Product overview

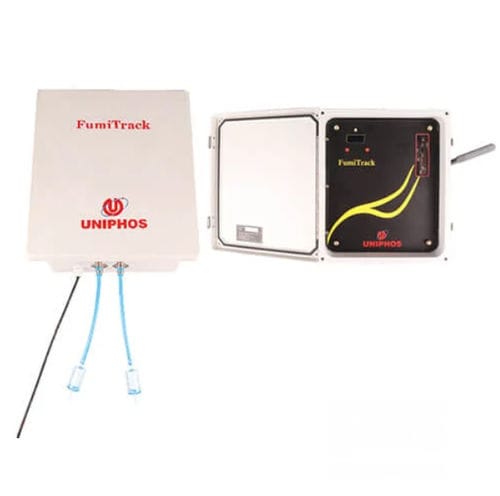

The Uniphos Single Port FumiTrack is a portable, programmable monitor for continuous detection and logging of phosphine (PH3) during fumigation of chambers, silos and containers. It draws gas samples via an internal pump capable of sampling through up to 100 m of tubing and transmits data to the cloud using an integrated GSM modem for remote monitoring and alerts.

Application

• In-situ continuous monitoring of phosphine concentrations for fumigation control and regulatory compliance

Features

• Measured gas: Phosphine (PH3), available ranges to 2000 or 5000 ppm
• Programmable monitoring intervals and user-configurable sampling/purge times
• Connectivity: GSM telemetry to cloud with IoT capabilities
• GPS location tagging and optional camera connectivity for site verification
• Integrated sampling pump with up to 100 m tubing capability

Specifications

• Concentration range: 0–2000 ppm (model dependent)
• Resolution: 1 ppm
• Typical response time (T90): < 30 s in sensor hood
• Accuracy: ±2% (subject to calibration gas and sampling system)
• Operating temperature: 0°C to +45°C (32°F to 113°F)
• Operating pressure: Ambient ±10%
• Display/interface: PLC & HMI
• Data logging: USB storage
• Power supply: 110–230 V AC, 50–60 Hz

Downloads (reference)

• Fumigation brochure and product documentation available
