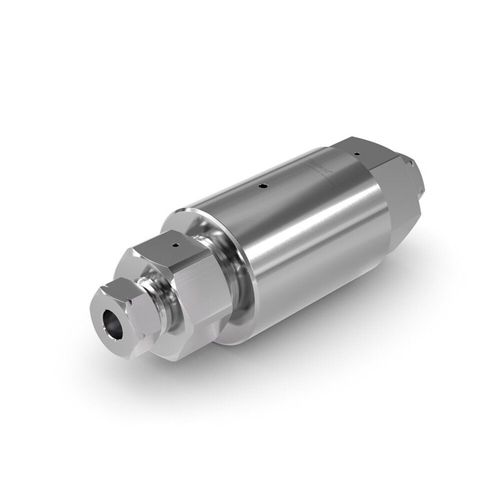

Ball check valve C1-189332

for oilbackflowhigh-pressure

Short description
For ultra-high pressure up to 4,200 bar / 60,000 psi

Product description
Where the medium in a pipeline must flow in only one direction and backflow must be prevented, the WEH® ultra-high pressure check valves perform this function reliably. The large effective nominal bore ensures high flow rates with low pressure drop. Installation is simplified by the integrated double-pressure screw: the check valve is tightened on a single wrench flat, avoiding stress or rotation of the tube.

Features

• Easy installation thanks to integrated double-pressure screws with 1 left-hand and 1 right-hand thread
• High flow capacity due to large effective nominal bore
• Long service life thanks to sealing with a high-grade ceramic ball
• Supplied with preassembled pressure rings and pressure screws

Application
The WEH® ultra-high pressure check valves with ball sealing are specifically designed for hydraulic applications in the high-pressure range. Alternative designs for other media and applications are available.

CAD
CAD files are available for this product family.

Product variants
Order no. | Design | Pressure range (PS) | Suitable for tube outer diameter | Nominal size
C1-189332 | Ball seal | 2,500 bar / 35,000 psi | 3/8" | 5 mm
C1-189396 | Ball seal | 2,500 bar / 35,000 psi | 3/8" | 5 mm
C1-189397 | Ball seal | 4,200 bar / 60,000 psi | 1/4" | 2.8 mm
C1-189398 | Ball seal | 4,200 bar / 60,000 psi | 1/4" | 2.8 mm
C1-189399 | Ball seal | 4,200 bar / 60,000 psi | 3/8" | 4 mm
C1-189400 | Ball seal | 4,200 bar / 60,000 psi | 3/8" | 4 mm
C1-189401 | Ball seal | 4,200 bar / 60,000 psi | 9/16" | 5 mm
C1-189402 | Ball seal | 4,200 bar / 60,000 psi | 9/16" | 5 mm

Characteristics / Technical specifications

• Max. operating pressure at B2: PS = 2,500 bar (36,259 psi) or 4,200 bar (60,916 psi), depending on version
• Opening pressure PC: 1.8 bar (26 psi)
• Temperature range: +5 °C to +50 °C
• Medium: liquids according to fluid group 2 (DGR), e.g., hydraulic oil
• Materials: high-strength stainless steel
• Design: ball sealing
• Max. inlet pressure at input B1: 800 bar
• Connection geometry: HP fitting 60° cone & thread
• Conformities / Tests / Approvals: Pressure equipment type: piping-like, pressure-retaining component according to Article 2, No. 5 of the Pressure Equipment Directive; classification: Article 4, Paragraph 3
