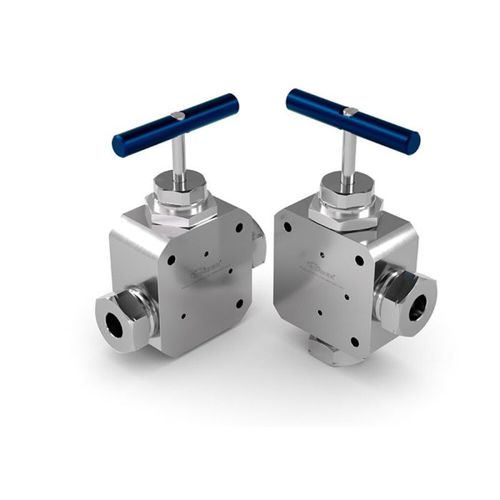

Needle valve WEH002

manualwith handwheelisolation

Product description
Needle valves provide a reliable means to shut off and regulate media. Designed specifically for extreme high‑pressure applications, these valves are used in demanding hydraulic systems such as hydroforming and waterjet cutting.

Advantages

• Bidirectional shut‑off – can be used in either flow direction
• High flow rates – larger nominal flow area relative to pipe inner diameter
• Fast actuation – full open/close in approximately two turns
• Easy handling – ergonomic handwheel for precise regulation
• Quick integration – compatible with fittings, identical overall dimensions
• Mounting‑friendly – multiple fixing holes for panel or rail installation

Features

• Needle valves for isolating high‑pressure lines
• Rapid opening and closing with only a few turns
• Simple installation thanks to numerous mounting options
• Optimized nominal flow area for high throughput
• Flow possible in both directions
• Supplied with preassembled ferrules and set screws

Application

• Hydroforming systems
• Waterjet cutting
• High‑pressure test benches
• Industrial and special machine construction

Technical data
Pressure range (PS): PS = 2,500 bar (36,259 psi), 4,200 bar (60,916 psi), depending on version
Temperature range: +5 °C to +50 °C
Media: Air / Water / Hydraulic oil (only oils according to fluid group 2 DGR)
Materials: high‑strength stainless steel
Connection geometry: HP‑Fitting 60° Cone & Thread
Conformities / tests / approvals: Certified quality assurance system according to Pressure Equipment Directive 2014/68/EU; classification: Article 4, paragraph 3

Characteristics / Specifications

• Series: WEH002
• Material: high‑strength stainless steel
• Pressure range: up to 4,200 bar (60,916 psi) depending on version
• Temperature range: +5 °C to +50 °C
• Media: Air, Water, Hydraulic oil (fluid group 2 DGR)
• Connection: HP‑Fitting 60° Cone & Thread
• Mounting: fixing holes for panel or rail mounting
• Operation: bidirectional shut‑off, high flow, quick actuation (approx. 2 turns)
• Scope of delivery: preassembled ferrules and set screws
• Certification: Quality management according to Pressure Equipment Directive 2014/68/EU
