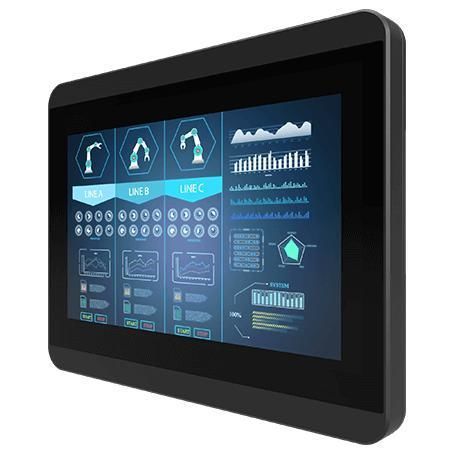

Touch screen monitor W07L100-PCO1OD

multitouch screenmulti-touch screenprojected capacitive touchscreen

Short description
Winmate 7-inch W07L100-PCO1OD PCAP touch chassis display with projected capacitive multi-touch, 1000 nits sunlight-readable panel, Front IP65 and VESA mounting; optional heater and UV film for outdoor and direct-sunlight use.

Key features

• Sunlight readable with 1000 nits panel brightness
• Supports VESA mount (default) and optional panel mount
• Projected Capacitive (PCAP) multi-touch touchscreen
• Operating temperature: -10°C to 60°C; optional -25°C to 60°C with heater
• Optional solar radiation protection with UV film for directed sunlight
• Front IP65 rating and fanless metal enclosure

Certifications

• CE
• FCC

Overview
Easy mounting
Supports universal wall and flat-surface mounting options for flexible installation across industrial applications.

Clear and vibrant displays
High-brightness panel and optimized readability under direct sunlight enable reliable 24/7 visual operation in outdoor settings.

Built for outdoor use
Optional heater expands the operating temperature range while optional UV film provides solar radiation protection for touchscreen reliability in exposed environments.

Technical specifications

• Model: W07L100-PCO1OD
• Brand: Winmate
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Size: 7.0 inches
• Resolution: 1024 x 600
• Panel Brightness: 1000.0 nits
• Contrast Ratio: 800:1
• View Angles: 85, 85, 85, 85
• Display Color: 16.7M Colors
• Active Area: 152.2144 x 85.92 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Storage Temperature: -20°C to 70°C
• IP rating: Front IP65
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: 1 x Speaker (Optional)
• Dimension: 189 x 145.4 x 47.8 mm
• Mounting: VESA mount (Default); Panel mount (Optional)
• Enclosure: Metal
• Cooling System: Fanless Design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (Optional, varies by product)
• Power Rating: 12V DC in
• Button: 5 Keys: -, +, Power, Esc, Enter
