Multi-touch screen monitor R15L600-PCC3OD

projected capacitive touchscreenoutdoor15"

Overview

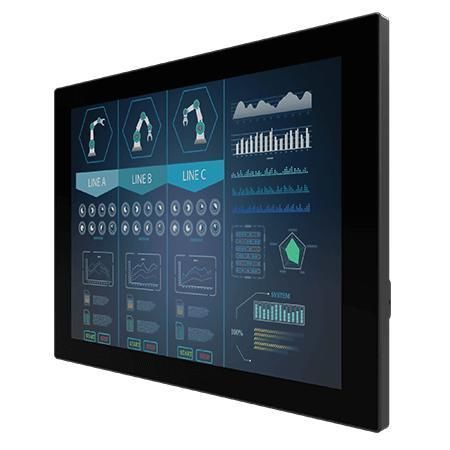

Winmate R15L600-PCC3OD is a 15.0-inch chassis display with a projected capacitive (PCAP) multi-touch panel, designed for outdoor applications. It features a 1000 nits sunlight-readable panel, VESA mounting and optional environmental protections for extended-range operation.

Key Features

• Sunlight-readable high-brightness panel (1000 nits)
• Projected Capacitive (PCAP) multi-touch
• VESA mount support for wall or flat-surface installation
• Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Optional UV film for solar radiation protection in direct-sun environments

Certifications

• CE
• FCC

Specifications

• Display: Size: 15.0 inches; Resolution: 1024 x 768; Display Color: 16.2M Colors; Active Area: 304.1 x 228.1 mm; Contrast Ratio: 2000:1; Viewing Angles: 88/88/88/88; Brightness: 1000 nits
• Touch / Glass: Projected Capacitive multi-touch screen
• Environment: Operating Humidity: 10%–90% RH, non-condensing; Operating Temp: -10°C to 60°C (optional -25°C to 60°C with heater); Storage Temp: -20°C to 70°C
• IO Ports: USB: 1 × USB (touch); Video: 1 × VGA (default), 1 × HDMI (optional), 1 × DVI (optional); Audio: Audio line in (3.5 mm, optional); 2 × speaker (optional)
• Mechanical: Dimension: 363.4 x 277.86 x 45.2 mm; Weight: 3.3 kg; Mounting: VESA; Enclosure: Aluminum; Cooling: Fanless design
• Power: Power rating: 12V DC in (standard); 24V DC in (optional)
• Control: 5 keys: -, +, Power, Esc, Enter
• Accessories: Supplied: VGA cable, HDMI cable, 100–240V AC to DC adapter, power cord, manual, VESA screws (varies by product); Optional: remote controller
