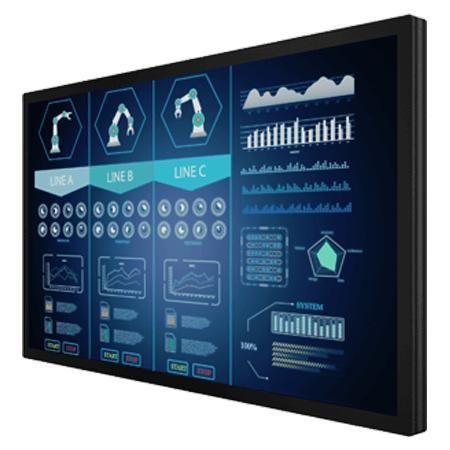

Multitouch screen monitor W55L100-PCA3OD

projected capacitive touchscreenindustrialoutdoor

Overview
Winmate W55L100-PCA3OD is a 55.0-inch industrial outdoor PCAP touch display designed for continuous 24/7 operation in direct sunlight and harsh environments. It supports VESA mounting and offers optional heater and UV film for extended temperature range and solar protection.

Key features

• Sunlight-readable high-brightness solution (2500 nits)
• VESA mount support
• Projected Capacitive (PCAP) multi-touch
• Operating temperature: -10°C to 60°C
• Optional heater for -25°C to 60°C operation
• Optional UV film for solar radiation protection

Certifications

• CE
• FCC

I/O and Accessories

• USB: 1 x USB for touch
• Video: 1 x VGA, 1 x HDMI, 1 x DVI (optional)
• Power: 24V DC input
• Standard accessories: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
• Optional accessory: Remote controller (varies by product)

Mechanical & Environmental

• Dimensions: 1273 x 744.6 x 78.4 mm
• Mounting: VESA mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Storage temperature: -20°C to 70°C
• Front IP rating: IP65

Control

• Buttons: 5 keys (-, +, Power, Esc, Enter)

Technical specifications

• Model: W55L100-PCA3OD
• Brand: Winmate
• Touch / Glass: Projected Capacitive multi-touch screen
• Size: 55.0 inches
• Resolution: 1920 x 1080
• Panel brightness: 2500 nits
• Contrast ratio: 4000:1
• View angles: 89°/89°/89°/89°
• Display color: 1.07B colors
• Active area: 1209.6 x 680.4 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Storage temperature: -20°C to 70°C
• IP rating: Front IP65
• Certification: CE, FCC
• USB: 1 x USB for touch
• Video: 1 x VGA; 1 x HDMI; 1 x DVI (optional)
• Dimension: 1273 x 744.6 x 78.4 mm
• Mounting: VESA mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Power rating: 24V DC in
• Standard accessories: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws
• Optional accessories: Remote controller (varies by product)
• Control buttons: -, +, Power, Esc, Enter
