Multitouch screen monitor W10L100-GCH2OD
projected capacitive touchscreenPCAP touchscreenindustrial

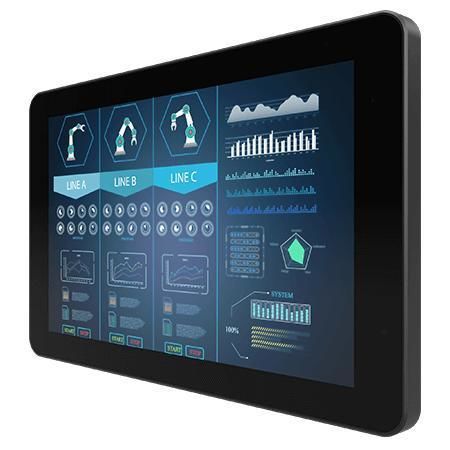

Multitouch screen monitor - W10L100-GCH2OD - Winmate, Inc. - projected capacitive touchscreen / PCAP touchscreen / industrial
Multitouch screen monitor - W10L100-GCH2OD - Winmate, Inc. - projected capacitive touchscreen / PCAP touchscreen / industrial
Multitouch screen monitor - W10L100-GCH2OD - Winmate, Inc. - projected capacitive touchscreen / PCAP touchscreen / industrial - image - 2
Multitouch screen monitor - W10L100-GCH2OD - Winmate, Inc. - projected capacitive touchscreen / PCAP touchscreen / industrial - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
multitouch screen, projected capacitive touchscreen, PCAP touchscreen
Applications
industrial, outdoor, for digital signage, for HMI interface
Display size
10.1"
Resolution
1280 x 800
Mounting
VESA mounting, panel-mount, wall-mount
Other characteristics
HDMI, USB, VGA, high-brightness, aluminum, DVI port, fanless, sunlight-readable, wide viewing angle
Operating temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Description

Key features
  • Sunlight-readable high-brightness panel (1000 nits)
  • Projected capacitive (PCAP) multi-touch
  • Supports VESA and panel mount
  • Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
  • Optional UV film for solar radiation protection
  • Fanless design, plastic bezel & aluminum back cover


Overview
  • Model: Winmate W10L100-GCH2OD — 10.1" PCAP touch chassis display designed for industrial and outdoor information panels.
  • Easy mounting: supports universal wall and flat-surface mounting for flexible installation in kiosks, control panels and outdoor enclosures.
  • Clear visibility: high-brightness, sunlight-readable panel suitable for 24/7 visual operation in bright environments.
  • Outdoor-ready options: optional heater for extended low-temperature operation and optional UV film to reduce solar radiation effects on the touch surface.


Certifications
  • CE
  • FCC


Technical specifications
  • Model: W10L100-GCH2OD
  • Touch / Glass: Projected Capacitive Multi Touch Screen
  • Size: 10.1"
  • Resolution: 1280 x 800
  • Panel Brightness: 1000.0 nits
  • Contrast Ratio: 800:1
  • View Angles: 85, 85, 85, 85
  • Display Color: 16.7M Colors
  • Active Area: 216.96 x 135.6 mm
  • Operating Humidity: 10% to 90% RH, Non-Condensing
  • Operating Temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
  • Storage Temperature: -20°C to 70°C
  • Certification: CE, FCC
  • USB Port: 1 x USB for Touch Screen
  • Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
  • Audio: 1 x Speaker (Optional)
  • Dimension: 264.6 x 173.3 x 35.7 mm
  • Weight: 1.3 kg
  • Mounting: VESA Mount / Panel Mount
  • Enclosure: Plastic Bezel & Aluminum back cover
  • Cooling System: Fanless Design
  • Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
  • Optional Accessory: Remote Controller (optional, varies by product)
  • Power Rating: 12V DC in; 24V DC in (optional)
  • Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
