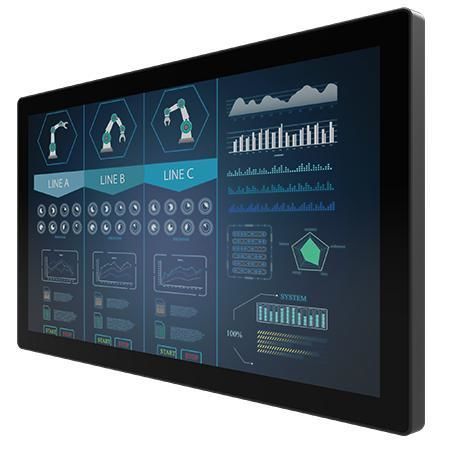

Multitouch screen monitor W24L100-GCC1OD

projected capacitive touchscreencapacitive touch screenindustrial

Product Name
Winmate W24L100-GCC1OD - 24 inches PCAP touch chassis display designed for outdoor and industrial visual applications with high-brightness and environmental options.

Overview

• Easy mounting: supports universal wall and flat surface mounting options for flexible installation.
• Clear and vibrant displays: sunlight-readable high-brightness solution suitable for direct sunlight and 24/7 visual operation.
• Built for outdoor use: optional heater for extended operating temperature and optional UV film for solar radiation protection on the touchscreen.

Key Features

• Sunlight readable with high brightness solution (1000 nits)
• Support VESA mount and panel mount
• Support PCAP (Projected Capacitive) multi-touch
• Operating temperature: -10 to 60°C; optional -25 to 60°C with heater
• Optional solar radiation protection with UV film for direct sunlight environments
• Fanless design for silent operation

Certifications

• CE
• FCC

Technical specifications

• Touch / Glass: Projected Capacitive Multi Touch Screen
• Size: 23.8 inches
• Resolution: 1920 x 1080
• Panel Brightness: 1000 nits
• Contrast Ratio: 1000:1
• View Angles: 88, 88, 88, 88
• Display Color: 16.7M Colors
• Active Area: 527.04 x 296.46 mm
• Buttons: 5 Keys: -, +, Power, Esc, Enter
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Storage Temperature: -20°C to 70°C
• USB Port: 1 x USB for touch
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Dimension: 588 x 358 x 55 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Plastic bezel & metal back cover
• Cooling System: Fanless design
• Accessories included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessory: Remote controller (varies by product)
• Power Rating: 12V DC in; 24V DC in (optional)
