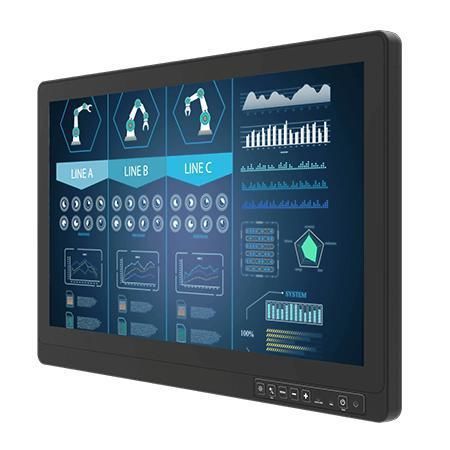

Multitouch screen monitor W22L100-67A3POD

projected capacitive touchscreenPCAP touchscreenindustrial

Overview
The W22L100-67A3POD is a 21.5-inch PCAP (projected capacitive) touch chassis display engineered for harsh industrial and outdoor applications. It pairs a 1920 x 1080, 1500 nits high-brightness panel with a fanless, fully sealed IP67 enclosure, aluminum die-cast housing with anti-corrosion treatment, wide operating temperature range and isolated 9–36V DC input for flexible power integration. VESA mounting and multiple waterproof I/O options simplify installation in machines, vehicles and outdoor cabinets.

Key features

• 21.5" FHD panel, 1920 x 1080, 1500 nits brightness
• Projected Capacitive (PCAP) multi-touch bonded to the panel for improved clarity
• Optional true-flat or anti-reflective protection glass bonded to panel
• Fully sealed IP67 chassis, dustproof and waterproof
• Aluminum die-cast housing with Surtec 650 pre-finish and polyester powder coating
• Built-in ambient light sensor and LED indicators
• Standard operating temperature −10 °C to 55 °C; optional intelligent heater extends to −25 °C to 60 °C
• Wide isolated DC input 9–36V with M12 waterproof connector; optional ignition on/off delay

Certifications

• CE
• FCC

Protection & Durability
Full IP67 enclosure protects against dust ingress and temporary immersion. The rugged aluminum housing with anti-corrosion coating and reinforced construction meets MIL-STD-810G for shock and vibration, making the display suitable for industrial, transportation and outdoor installations.

Thermal & Cooling
Fanless design with passive cooling reduces noise and maintenance. An optional intelligent heater enables reliable operation in low-temperature environments and cold-start conditions.

Installation & Power
VESA mounting support and multiple waterproof connectors (M12 and others) enable flexible mechanical and electrical integration. The display accepts 9–36V DC isolated input for industrial power systems; an optional 100–240V AC to DC adapter is available.

Included & Optional Accessories

• Included: external open-wire power cable with waterproof connector, external USB cable for touch (waterproof), external VGA and HDMI cables with waterproof connectors, 3 x waterproof caps, VESA screws
• Optional: 100–240V AC to DC adapter with power cord, external COM cable with waterproof connector, ignition delay accessory

Technical specifications

• Model: W22L100-67A3POD
• Brand: Winmate
• Display: 21.5 inches, 1920 x 1080
• Brightness: 1500 nits
• Contrast: 1000:1
• Viewing angles: 89/89/89/89
• Colors: 16.7M
• Active area: 476.64 x 268.11 mm
• Dimensions (W x H x D): 529.6 x 342.8 x 58 mm
• Weight: 8.67 kg
• Mounting: VESA
• Housing: Aluminum die-cast; Surtec 650 pre-finish; polyester powder coating
• Cooling: Fanless (passive)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: −10 °C to 55 °C (standard); −25 °C to 60 °C (with intelligent heater)
• Storage temperature: −30 °C to 70 °C
• Shock / Vibration: MIL-STD-810G (Method 516.6 Proc I; Method 514.6 Proc I)
• IP rating: IP67
• Certifications: CE, FCC
• I/O overview: Power 1 x M12 waterproof connector (9–36V DC); USB touch 1 x M12; VGA 1 x M12; HDMI 1 x waterproof connector; optional M12 for RS232 touch and remote
• Indicators & controls: power LED, lock/unlock LED, power key, brightness +/-, menu, day/night mode, ambient light sensor
