Multitouch screen monitor R12L100-PCM2OD
projected capacitive touchscreenPCAP touchscreenoutdoor

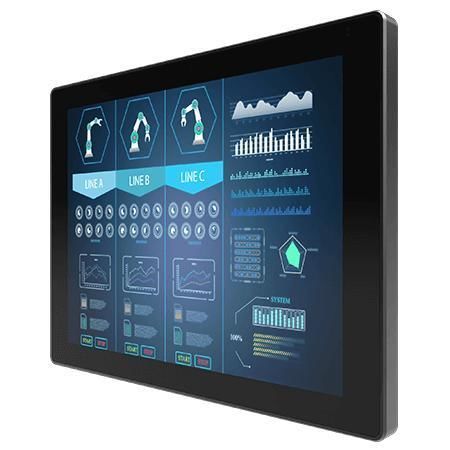

Multitouch screen monitor - R12L100-PCM2OD - Winmate, Inc. - projected capacitive touchscreen / PCAP touchscreen / outdoor
Multitouch screen monitor - R12L100-PCM2OD - Winmate, Inc. - projected capacitive touchscreen / PCAP touchscreen / outdoor
Multitouch screen monitor - R12L100-PCM2OD - Winmate, Inc. - projected capacitive touchscreen / PCAP touchscreen / outdoor - image - 2
Multitouch screen monitor - R12L100-PCM2OD - Winmate, Inc. - projected capacitive touchscreen / PCAP touchscreen / outdoor - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
multitouch screen, projected capacitive touchscreen, PCAP touchscreen
Applications
outdoor, for industrial machines
Display size
12.1"
Resolution
1024 x 768
Mounting
VESA mounting, wall-mount
Other characteristics
HDMI, USB, VGA, high-brightness, DVI port, fanless, sunlight-readable, wide viewing angle, IP65
Operating temperature

Min.: -10 °C
(14 °F)

Max.: 60 °C
(140 °F)

Description

Key Features
  • Sunlight-readable with high-brightness options (500 nits default, 1000 nits optional)
  • Projected Capacitive (PCAP) multi-touch
  • VESA mounting support
  • Operating temperature: -10°C to 60°C (optional heater for -25°C to 60°C)
  • Front protection: IP65
  • Optional UV film for direct-sun environments


Overview
  • Designed for outdoor industrial use, the Winmate R12L100-PCM2OD delivers readable, high-bright displays for 24/7 visual operation in direct sunlight.
  • Universal wall and flat-surface mounting options simplify installation across industrial and commercial sites.
  • Optional heater and UV protection make the unit suitable for wide temperature ranges and high-solar environments.


Certifications
  • CE
  • FCC


Specifications
Display
  • Touch / Glass: Projected Capacitive Multi Touch Screen (PCAP)
  • Size: 12.1 inches
  • Resolution: 1024 x 768
  • Panel Brightness: 500 nits (Default); 1000 nits (Optional)
  • Contrast Ratio: 1000:1
  • View Angles: 89/89/89/89
  • Display Color: 16.2M Colors
  • Active Area: 245.76 x 184.32 mm


Environment
  • Operating Humidity: 10% to 90% RH, non-condensing
  • Operating Temperature: -10°C to 60°C (heater option: -25°C to 60°C)
  • Storage Temperature: -20°C to 70°C
  • Front IP rating: IP65


IO Ports
  • USB: 1 x USB for touch
  • Video: 1 x VGA (Default); HDMI (Optional); DVI (Optional)
  • Audio: 3.5mm line-in (Optional); 2 x speakers (Optional)


Mechanical
  • Dimensions: 296.2 x 226.7 x 45.5 mm
  • Mounting: VESA mount
  • Enclosure: Metal
  • Cooling: Fanless design


Accessory
  • Included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (may vary)
  • Optional: Remote controller (varies by product)


Power
  • Power Rating: 12V DC in (standard); 24V DC in (optional)


Control
  • Buttons: 5 keys ( -, +, Power, Esc, Enter )


Technical specifications
  • Model: R12L100-PCM2OD
  • Brand: Winmate
