Multitouch screen monitor R10L100-PCT2OD
projected capacitive touchscreenPCAP touchscreen10.4"

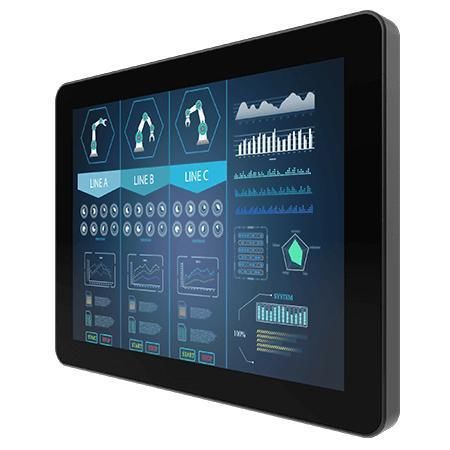

Multitouch screen monitor - R10L100-PCT2OD - Winmate, Inc. - projected capacitive touchscreen / PCAP touchscreen / 10.4"
Multitouch screen monitor - R10L100-PCT2OD - Winmate, Inc. - projected capacitive touchscreen / PCAP touchscreen / 10.4"
Multitouch screen monitor - R10L100-PCT2OD - Winmate, Inc. - projected capacitive touchscreen / PCAP touchscreen / 10.4" - image - 2
Multitouch screen monitor - R10L100-PCT2OD - Winmate, Inc. - projected capacitive touchscreen / PCAP touchscreen / 10.4" - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
multitouch screen, projected capacitive touchscreen, PCAP touchscreen
Display size
10.4"
Resolution
1024 x 768
Mounting
VESA mounting, wall-mount
Other characteristics
HDMI, VGA, high-brightness, DVI port, fanless, sunlight-readable, IP65
Operating temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Description

Overview
Winmate 10.4-inch PCAP touch chassis display R10L100-PCT2OD is a sunlight-readable industrial/outdoor chassis display featuring a projected capacitive multi-touch screen, 1000-nit panel brightness, front IP65 protection, VESA mount support and optional UV film for solar radiation protection. An optional heater extends the operating range for cold environments.

Key Features
  • Sunlight readable: 1000 nits panel brightness
  • Projected capacitive (PCAP) multi-touch
  • Front IP65 protection
  • VESA mounting support
  • Operating temperature: -10°C to 60°C; optional -25°C to 60°C with heater
  • Optional solar radiation protection with UV film


Certifications
  • CE
  • FCC


Product Details
Easy mounting options (wall and flat-surface) and a fanless metal enclosure enable installation in varied industrial and outdoor environments. The high-brightness panel and PCAP touch support continuous 24/7 visual operation under direct sunlight. Optional heater and UV film increase reliability in low-temperature and high-radiation environments.

Technical Specifications
  • Model: R10L100-PCT2OD
  • Touch / Glass: Projected Capacitive Multi Touch Screen
  • Size: 10.4 inches
  • Resolution: 1024 x 768
  • Panel Brightness: 1000 nits
  • Contrast Ratio: 1000:1
  • View Angles: 88/88/88/88
  • Display Color: 16.2M colors
  • Active Area: 210.4 x 157.8 mm
  • Operating Humidity: 10% to 90% RH, non-condensing
  • Operating Temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
  • Storage Temperature: -20°C to 70°C
  • IP Rating: Front IP65
  • USB: 1 x USB for touch
  • Video: 1 x VGA (standard); 1 x HDMI (optional); 1 x DVI (optional)
  • Dimensions: 252.41 x 197.8 x 43 mm
  • Mounting: VESA mount
  • Enclosure: Metal, fanless design
  • Power: 12V DC in (standard); 24V DC in (optional)
  • Accessories (included): VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
  • Optional accessory: Remote controller (optional)
  • Control: 5 keys: -, +, Power, Esc, Enter
