LCD monitor R19L100-GCA3OD
multitouch screenprojected capacitive touchscreenindustrial

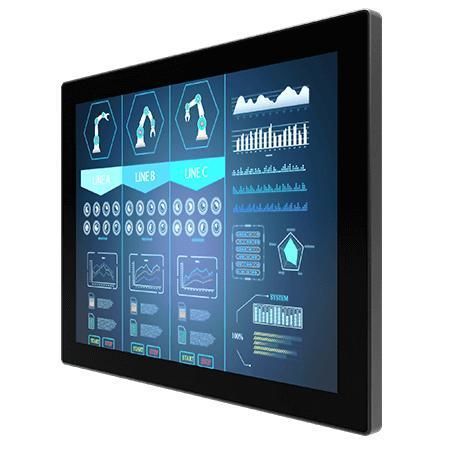

LCD monitor - R19L100-GCA3OD - Winmate, Inc. - multitouch screen / projected capacitive touchscreen / industrial
LCD monitor - R19L100-GCA3OD - Winmate, Inc. - multitouch screen / projected capacitive touchscreen / industrial
LCD monitor - R19L100-GCA3OD - Winmate, Inc. - multitouch screen / projected capacitive touchscreen / industrial - image - 2
LCD monitor - R19L100-GCA3OD - Winmate, Inc. - multitouch screen / projected capacitive touchscreen / industrial - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
LCD, multitouch screen, projected capacitive touchscreen
Applications
industrial, outdoor, for industrial machines
Display size
19"
Resolution
1280 x 1024
Mounting
VESA mounting, panel-mount
Other characteristics
HDMI, USB, VGA, high-brightness, DVI port, fanless, sunlight-readable, rugged
Operating temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Description

Key Features
  • Sunlight-readable with high-brightness 1000 nits panel
  • Projected Capacitive (PCAP) multi-touch
  • VESA and panel mounting options
  • Operating temperature: -10°C to 60°C; optional -25°C to 60°C with heater
  • Optional UV film for solar radiation protection
  • Fanless design and rugged enclosure for outdoor/industrial use


Overview
  • Flexible installation: supports universal wall, panel and flat-surface mounting to fit industrial integration requirements.
  • Optimized outdoor visibility: high-brightness panel and optical options improve readability under direct sunlight and enable continuous 24/7 operation.
  • Environment-ready: optional heater extends low-temperature operation and optional UV film protects the touch surface in direct-sun environments.


Certifications
  • CE
  • FCC


Technical specifications
  • Model: R19L100-GCA3OD
  • Brand: Winmate
  • Display size: 19.0 inches
  • Touch / Glass: Projected Capacitive Multi Touch Screen
  • Resolution: 1280 x 1024
  • Panel brightness: 1000 nits
  • Contrast ratio: 1000:1
  • View angles: 85, 85, 80, 80
  • Display color: 16.7M Colors
  • Active area: 376.32 x 301.06 mm
  • Operating humidity: 10% to 90% RH, non-condensing
  • Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
  • Storage temperature: -20°C to 70°C
  • Certification: CE, FCC
  • USB port: 1 x USB for touch screen
  • Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
  • Dimension: 445 x 370 x 51 mm
  • Mounting: VESA Mount / Panel Mount
  • Enclosure: Plastic bezel & Metal back cover
  • Cooling system: Fanless design
  • Accessories (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies)
  • Optional accessory: Remote controller (optional, varies by product)
  • Power rating: 12V DC in (standard); 24V DC in (optional)
  • Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
