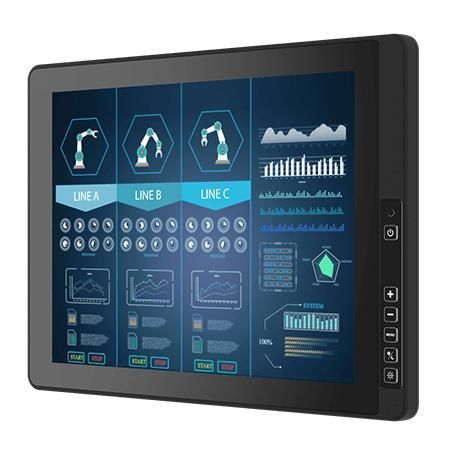

Multitouch screen monitor R15L100-67C3POD

projected capacitive touchscreencapacitive touch screentouch

Overview
Winmate R15L100-67C3POD is a 15-inch PCAP (projected capacitive) multi-touch chassis display engineered for industrial and outdoor environments. It features 1024 x 768 resolution, 1000 nits brightness, IP67-rated sealed enclosure, fanless passive cooling, aluminum die-cast housing with anti-corrosion finish, VESA mounting and wide isolated 9–36 V DC input. An optional intelligent heater and ignition delay option extend operation in cold-climate and vehicle applications.

Key Features

• 15.0-inch panel, 1024 x 768 resolution, 1000 nits brightness, 2000:1 contrast
• Projected capacitive multi-touch bonded to panel (optical bonding default); optional true-flat protection glass
• Front IP67 sealing for dust and water resistance; VESA mount for flexible installation
• Aluminum die-cast enclosure with Surtec 650 pre-treatment and polyester powder coating
• Fanless sealed design for passive cooling; operating humidity 10%–90% RH non-condensing
• Operating temperature: -10°C to 55°C (standard); optional -25°C to 60°C with intelligent heater
• Wide isolated DC input 9–36 V; optional ignition on/off delay and AC/DC adapter
• MIL-STD-810G shock and vibration compliance

Certifications

• CE
• FCC

Product Presentation
The R15L100-67C3POD is designed for integration into automation, transportation, heavy machinery and outdoor systems where sealed protection, wide power compatibility and reliable touch performance are required. M12 waterproof connectors and included waterproof cables simplify installation in harsh or mobile environments. The optional heater and ignition-delay features support cold-start and vehicle-mounted deployments.

Technical Specifications

• Display size: 15.0 inches; Active area: 304.1 x 228.1 mm; Dimensions: 379.4 x 278.4 x 58 mm; Weight: 3.8 kg
• Touch/Glass: Projected Capacitive multi-touch bonded with panel (default); True-flat protection glass bonding optional
• Resolution: 1024 x 768; Panel brightness: 1000 nits; Contrast ratio: 2000:1; Colors: 16.2M; View angles: 88/88/88/88
• Enclosure: Aluminum die-cast; Pre-finish Surtec 650 Type II Class 3; Polyester powder coating
• Cooling system: Fanless passive design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: -10°C to 55°C (standard); -25°C to 60°C (with intelligent heater)
• Storage temperature: -30°C to 70°C
• Shock/Vibration: MIL-STD-810G Method 516.6 Proc I (shock); Method 514.6 Proc I (vibration)
• IP rating: IP67
• I/O: 1 x M12 waterproof connector for 9–36V DC power; 1 x M12 connector for touchscreen via USB signal; 1 x M12 connector for VGA input; 1 x waterproof connector for HDMI input; optional M12 RS232 connectors
• Controls & indicators: Power key; +/- brightness keys; Menu key (auto/manual brightness); Day/Night mode; LED indicators; built-in ambient light sensor
• Accessories included: External open-wire power cable (waterproof), external USB/VGA/HDMI cables (waterproof), 3 x waterproof caps, VESA screws
• Optional accessories: 100–240V AC to DC adapter with power cord; external COM cable (waterproof)
