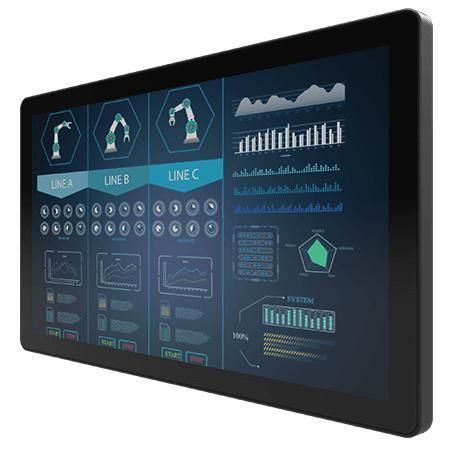

Multitouch screen monitor W22L100-GCB1OD

projected capacitive touchscreenindustrialoutdoor

Key Features

• Sunlight-readable solution: 1000 nits panel brightness
• Supports VESA mount and panel mount
• Projected Capacitive (PCAP) multi-touch
• Operating temperature: -10 °C to 60 °C (optional -25 °C to 60 °C with heater)
• Optional UV film for solar radiation protection in direct sunlight
• Fanless design for reliable outdoor operation

Overview
W22L100-GCB1OD is a 21.5-inch PCAP touch chassis display designed for industrial and outdoor applications. The product supports multiple mounting options and is engineered to maintain legibility in direct sunlight, enabling continuous 24/7 visual operation in demanding environments. Optional heater and UV protection extend operating conditions for exposed installations.

Certifications

• CE
• FCC

Specifications

• Model: W22L100-GCB1OD
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Size: 21.5 inches
• Resolution: 1920 x 1080
• Panel Brightness: 1000 nits
• Contrast Ratio: 1000:1
• View Angles: 90, 90, 90, 90
• Display Color: 16.7M Colors
• Active Area: 476.64 x 268.11 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: -10 °C to 60 °C (optional -25 °C to 60 °C with heater)
• Storage Temperature: -20 °C to 70 °C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Dimension: 530 x 322 x 51 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Plastic bezel & Metal back cover
• Cooling System: Fanless Design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (optional, varies by product)
• Power Rating: 12V DC in (standard); 24V DC in (optional)
• Buttons: 5 Keys: -, +, Power, Esc, Enter
