Multitouch screen monitor W32L100-PCA4OD

projected capacitive touchscreenPCAP touchscreenindustrial

Overview

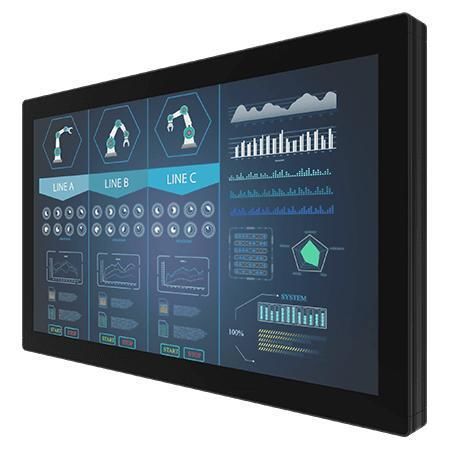

Winmate 32-inch W32L100-PCA4OD PCAP touch chassis display designed for outdoor and industrial environments. Provides sunlight-readable 1500 nits brightness, PCAP multi-touch, VESA mounting and optional UV solar protection and heater for extended operating temperature range. Fanless metal housing supports reliable 24/7 operation.

Key Features

• Sunlight-readable with 1500 nits panel brightness
• Projected Capacitive (PCAP) multi-touch
• Front protection: IP65
• VESA mounting support
• Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Optional solar radiation protection with UV film for directed sunlight environments

Certifications

• CE
• FCC

Product Details
Easy mounting: supports universal wall and flat-surface VESA options for fast installation across industrial sites.

Clear and vibrant displays: 1500-nit panel and anti-reflective design enhance readability under direct sunlight and support continuous 24/7 visual operation.

Built for outdoor use: fanless metal enclosure and optional heater extend operating range; optional UV film reduces solar radiation impact on the touch panel for directed-sunlight applications.

Technical specifications

• Model: W32L100-PCA4OD
• Brand: Winmate
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Size: 32.0 inches
• Resolution: 1920 x 1080
• Panel Brightness: 1500 nits
• Contrast Ratio: 4000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 698.4 x 392.85 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Storage Temperature: -20°C to 70°C
• IP rating: Front IP65
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA, 1 x HDMI, 1 x DVI (Optional)
• Dimension: 777.4 x 477.5 x 48 mm
• Mounting: VESA Mount
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Power Rating: 12V DC in; 24V DC in (optional)
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (optional, varies by product)
• Button: 5 Keys: -, +, Power, Esc, Enter
