LCD monitor R08L200-RMU1

resistive touch screenwith touchscreenindustrial

Overview

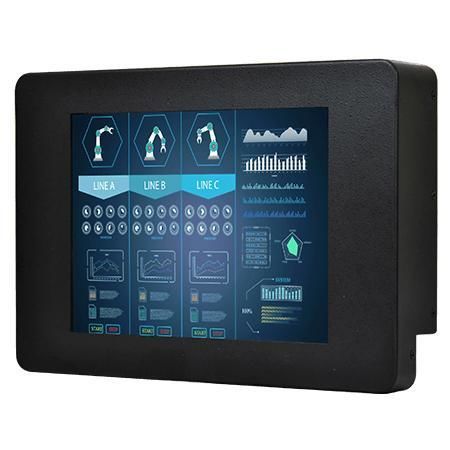

The R08L200-RMU1 is an 8.4 inch rear mount display designed for industrial and OEM integration. It features an 800 x 600 panel and options for resistive touch, SAW touch or protection glass without touch, making it suitable for factory automation, control consoles, kiosks and ATMs.

Touch and surface options
Default configuration is a resistive touch screen. Optional surface choices include protection glass (non-touch) or SAW (Surface Acoustic Wave) touch to meet different operator and environmental requirements.

Interfaces and integration
Standard video input is VGA with optional HDMI and DVI for flexible connection to embedded boards and systems. A USB port supports touch interface; optional audio line-in and speakers are available.

Installation
Rear-side mounting enables a fully enclosed installation inside consoles, cabinets or racks. The unit supports VESA and panel mounting for secure integration in control panels or housings.

Applications
Designed to be secured from the rear with no exposed panel edges, the display is adapted for HMIs, operator control stations, self-service kiosks, ATMs and other industrial automation installations.

Key features

• 8.4 in rear mount display, 800 x 600 resolution
• VGA input (standard); HDMI and DVI optional
• Resistive touch standard; SAW or protection glass optional
• VESA and panel mount compatible; rear-side installation

Certifications
CE, FCC

Technical specifications

• Size: 8.4 inches
• Resolution: 800 x 600
• Touch / Glass: Resistive Touch (Default); Protection Glass w/o Touch (Optional); SAW Touch (Optional)
• Panel Brightness: 600 nits
• Contrast Ratio: 600:1
• Viewing Angles: 75, 75, 60, 70
• Display Color: 262K colors
• Active Area: 170.4 x 127.8 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IO: 1 x USB (touch); 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) optional; 2 x speaker optional
• Dimensions (W x H x D): 255 x 210 x 49.5 mm
• Weight: 1.8 kg
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal, fanless design
• Power: 12V DC input; included 100~240V AC to DC adapter
• Accessories included: VGA cable, HDMI cable, power adapter, power cord, manual, VESA screws (varies)
• Optional accessory: Remote controller (varies by product)
• Control buttons: 5 keys (-, +, Power, Esc, Enter)
