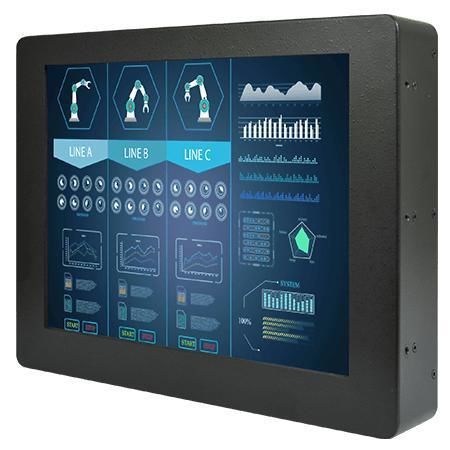

Resistive touch screen monitor R12L600-RMM2WT

industrialfor displaysfor HMI interface

Product
Winmate R12L600-RMM2WT is a 12.1-inch rear-mount wide-temperature display designed for industrial and OEM applications requiring enclosed rear installation in consoles, cabinets or racks.

Key features

• 12.1 inch display, 1024 x 768 resolution
• VGA input (standard); HDMI and DVI optional
• Rear-mount design with VESA and panel-mount support
• Wide operating temperature: -20 °C to 60 °C
• Panel brightness 500 nits; contrast ratio 1000:1

Touch & surface options
Provides flexible surface options to match integration needs.

• Resistive touch screen (default)
• Protection glass without touch (optional)
• SAW touch (optional)

Interfaces & integration
Supports common video inputs and touch connectivity for embedded systems.

• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• USB: 1 x USB for touch
• Audio: 3.5mm line-in (optional); 2 x speaker (optional)

Installation & mounting
Rear-mount enclosure enables fully enclosed installation from the back for secure integration in cabinets, consoles or racks. VESA and panel mounting supported.

Certifications

• CE
• FCC

Technical specifications

• Model: R12L600-RMM2WT
• Brand: Winmate
• Display size: 12.1 inches
• Resolution: 1024 x 768
• Panel brightness: 500 nits
• Contrast ratio: 1000:1
• View angles: 89/89/89/89
• Display color: 16.2M colors
• Active area: 245.76 x 184.32 mm
• Touch/Glass: Resistive (default); Protection glass w/o touch (optional); SAW (optional)
• Video input: VGA (default); HDMI (optional); DVI (optional)
• USB: 1 x USB for touch
• Operating humidity: 30%–90% RH, non-condensing
• Operating temperature: -20 °C to 60 °C
• Storage temperature: -25 °C to 65 °C
• Dimension: 310 x 240 x 50 mm
• Weight: 2.9 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal
• Cooling: Fanless design
• Power: 12V DC in (standard); 24V DC in (optional)
• Controls: 5 keys: -, +, Power, Esc, Enter

Accessories

• Included (typical): VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
• Optional: Remote controller (varies by product)

Applications
Suitable for HMI operator panels, enclosed kiosk and ATM installations, OEM integrations and industrial automation systems that require rear-mount, enclosed displays with wide temperature operation.
