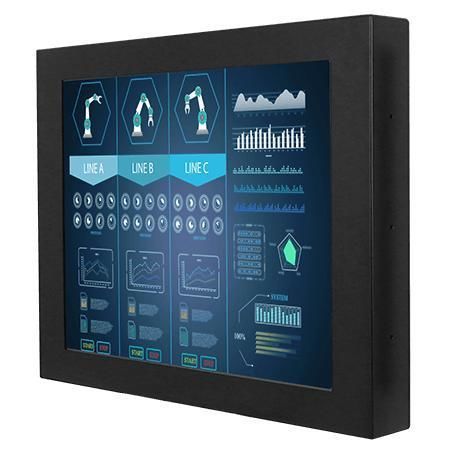

LCD monitor R19L300-RMM2

resistive touch screenfor displaysPOS

Overview

Performance and durability for industrial and OEM integration: the Winmate Rear-mount Display R19L300-RMM2 is a 19" industrial panel designed for factory automation, control consoles, self-service kiosks, ATMs and embedded systems. The fully enclosed rear-mount design enables secure installation in cabinets or consoles and supports VESA and panel-mount configurations.

Key features

• 19" panel, 1280 x 1024 resolution
• VGA input (default); HDMI and DVI optional
• Rear-mount / panel-mount design; VESA compatible
• Metal enclosure, fanless design

Touch & surface options

• Resistive touch screen (default)
• Protection glass without touch function (optional)
• SAW (Surface Acoustic Wave) touch (optional)

Interfaces & installation

• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• USB: 1 x USB for touch interface
• Audio: line in (3.5 mm) and 2 x speakers optional
• Mounting: rear-mount installation for enclosed panels; supports VESA and panel-mount

Certifications

• CE
• FCC

Applications

Suitable for operator HMI, embedded OEM systems, kiosks, ATMs and industrial automation environments where a secure rear-mounted display is required.

Technical specifications

• Display size: 19.0 inches
• Touch / glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Resolution: 1280 x 1024
• Panel brightness: 300 nits
• Contrast ratio: 2000:1
• View angles: 89 / 89 / 89 / 89
• Display color: 16.7M Colors
• Active area: 376.32 x 301.06 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• USB port: 1 x USB for touch screen
• Video ports: VGA (default); HDMI (optional); DVI (optional)
• Audio: audio line in (3.5mm) (optional); 2 x speaker (optional)
• Dimensions: 450 x 390 x 62 mm
• Weight: 8.5 kg
• Mounting: VESA mount / panel mount
• Enclosure: metal
• Cooling: fanless design
• Power rating: 12V DC input (24V DC optional)
• Control buttons: 5 keys (-, +, Power, Esc, Enter)
• Included accessories: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessory: remote controller (optional, varies by product)
