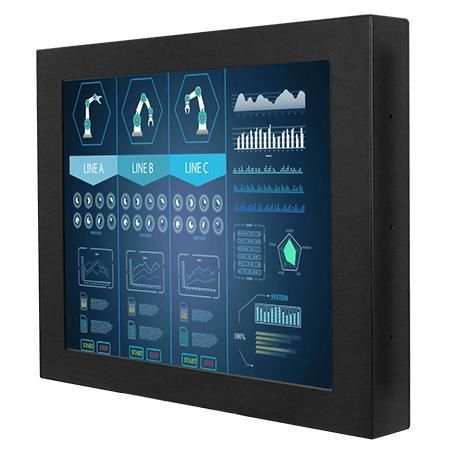

LCD monitor R19L300-RMM1

resistive touch screenindustrialfor displays

Overview
The R19L300-RMM1 is a 19.0-inch rear-mount industrial display designed for integration in consoles, cabinets and OEM equipment where a fully enclosed, back-fixed installation is required. It targets factory automation, operator HMIs, self-service kiosks, ATMs and other industrial or commercial applications.

Key features

• Display: 19.0 inches, 1280 x 1024
• Standard video: VGA (default); HDMI and DVI optional
• Rear mount design; supports VESA and panel mounting
• Metal enclosure and fanless design

Touch and surface options
Flexible front-surface configurations allow selection according to operational needs: resistive touch screen as standard, protection glass without touch function as an option, and SAW touch as an option. On-screen usability is supported via a 5-key control set and optional audio components.

Interfaces & connectivity

• 1 x VGA (default)
• 1 x HDMI (optional)
• 1 x DVI (optional)
• 1 x USB for touch
• Audio line-in (3.5 mm) and 2 x speakers available as options

Installation & integration
Engineered for rear-side mounting: the unit can be fully enclosed in a cabinet or console and secured from the back. VESA mounting support allows combination with stands or integration into racks. Standard accessory kit facilitates system connection and installation.

Certifications

• CE
• FCC

Technical specifications

• Model: R19L300-RMM1
• Display size: 19.0 inches
• Resolution: 1280 x 1024
• Touch / Glass: Resistive Touch Screen (default); Protection Glass w/o Touch Function (optional); SAW Touch (optional)
• Panel brightness: 250 nits
• Contrast ratio: 1000:1
• View angles: 85, 85, 80, 80
• Display color: 16.7M Colors
• Active area: 376.32 x 301.06 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IO ports: 1 x USB for touch
• Video inputs: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line-in (3.5 mm) optional; 2 x speaker optional
• Mechanical dimension: 482.6 x 399 x 61 mm
• Weight: 8.2 kg
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal
• Cooling: Fanless design
• Power: 12V DC in (standard); 24V DC in optional; includes 100~240V AC to DC adapter
• Control buttons: 5 keys (-, +, Power, Esc, Enter)
• Accessories included: VGA cable, HDMI cable, AC-DC adapter, power cord, manual, VESA screws (varies by product)
• Optional accessories: Remote controller (varies by product)
