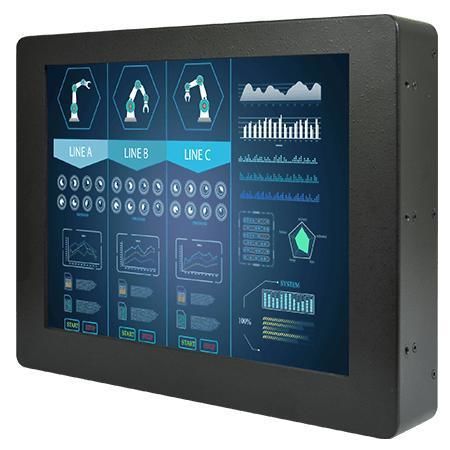

Resistive touch screen monitor R12T600-RML1

for industrial machinesfor HMI interface12.1"

Product overview
The R12T600-RML1 rear-mount display from Winmate is a 12.1in 800 x 600 panel engineered for industrial and OEM applications. It is intended for factory automation, operator consoles, control centers, self-service kiosks, ATMs and other enclosed installations where rear mounting and durable integration are required.

Key features

• 12.1in 800 x 600 rear-mount display
• VGA and HDMI signal inputs (DVI optional)
• Rear mounting compatible with VESA and panel mount
• Multiple surface options: resistive touch (default), protection glass without touch, SAW touch

Certifications

• CE
• FCC

Performance & durability
Designed for continuous industrial use, the display offers 450 nits brightness, a 700:1 contrast ratio and wide viewing angles. The metal enclosure and fanless design support reliable operation in embedded and cabineted environments.

Intuitive operations with the touchscreen
Surface options adapt to operator needs: default resistive touch for touch interaction, optional protection glass when touch is not required, or SAW for enhanced touch clarity. A 5-key control set provides local operation: -, +, Power, Esc, Enter.

HDMI and VGA interfaces
Standard VGA plus optional HDMI and DVI allow straightforward integration with embedded boards and industrial systems. USB for touch and optional audio/speakers expand connectivity for HMI and kiosk use.

Rear-side installation
Engineered to be fixed from the rear, the unit installs flush inside consoles or cabinets without exposing panel edges. VESA and panel mount options simplify mounting in racks, enclosures and kiosks.

Suitable applications
Optimized for operator control HMI, kiosks, consoles and control centers where a rear-secured, enclosed installation is required.

Technical specifications

• Display — Size: 12.1 inches
• Display — Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Display — Resolution: 800 x 600
• Display — Panel Brightness: 450 nits
• Display — Contrast Ratio: 700:1
• Display — View Angles: 80, 80, 75, 65
• Display — Display Color: 16.2M Colors
• Display — Active Area: 246 x 184.5 mm
• Environment — Operating Humidity: 10% to 90% RH, Non-Condensing
• Environment — Operating Temperature: 0°C to 50°C
• Environment — Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• IO Ports — USB Port: 1 x USB for Touch Screen
• IO Ports — Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• IO Ports — Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Mechanical — Dimension: 340 x 240 x 50 mm
• Mechanical — Weight: 2.9 kg
• Mechanical — Mounting: VESA Mount / Panel Mount
• Mechanical — Enclosure: Metal
• Mechanical — Cooling System: Fanless Design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (Optional, varies by product)
• Power Rating: 12V DC input (24V DC optional)
• Control Buttons: 5 Keys: -, +, Power, Esc, Enter
