LCD monitor R08T200-RMT1WT

resistive touch screenindustrialfor industrial machines

Overview

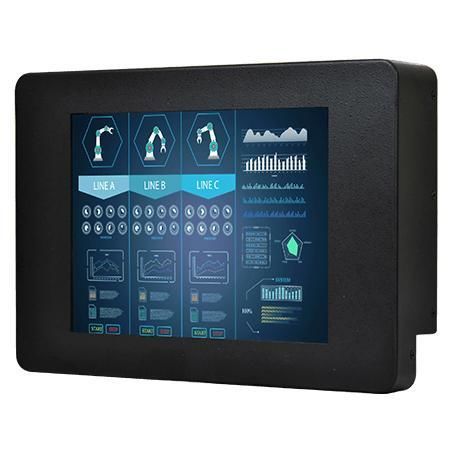

Rear-mount 8.4-inch wide-temperature display R08T200-RMT1WT designed for industrial and OEM applications such as factory automation, control consoles, self-service kiosks and ATMs. Rear installation and VESA support enable secure mounting in cabinets or racks. Fanless metal enclosure increases reliability in harsh environments.

Key Features

• 8.4-inch, 800 x 600 wide-temperature display
• VGA input (default); HDMI and DVI optional
• Rear-mount design; VESA and panel-mount compatible
• Operating temperature range: -20°C to 60°C
• Resistive touch (default); protection glass (no-touch) and SAW touch optional

Certifications

• CE
• FCC

Product Details

• Integration: Standard VGA and optional HDMI/DVI interfaces for easy connection to embedded boards and systems.
• Mounting: Rear-mount design supports fully enclosed installations in consoles, cabinets or racks while offering VESA/panel mounting flexibility.
• Touch and front options: Multiple surface options to meet operator and environmental requirements.
• Thermal & mechanical: Metal enclosure with fanless cooling reduces dust ingress and supports long-term operation.
• I/O and controls: USB for touch, audio line-in and optional speakers, five front keys for local control.

Technical Specifications

• Display Size: 8.4 inches
• Resolution: 800 x 600
• Touch / Glass: Resistive Touch Screen (default); Protection Glass w/o Touch (optional); SAW Touch (optional)
• Panel Brightness: 450 nits
• Contrast Ratio: 600:1
• View Angles: 80, 80, 60, 80
• Display Color: 16.2M Colors
• Active Area: 170.4 x 127.8 mm
• Operating Humidity: 30% to 90% RH, non-condensing
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -25°C to 65°C
• Certifications: CE, FCC
• USB Port: 1 x USB for touch
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line-in (3.5 mm) optional; 2 x speaker optional
• Dimensions: 255 x 180 x 50 mm
• Weight: 1.9 kg
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal
• Cooling System: Fanless design
• Power: 12V DC input (AC adapter included)
• Controls: 5 keys: -, +, Power, Esc, Enter
• Accessories (included): VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
• Optional accessory: Remote controller (varies by product)
