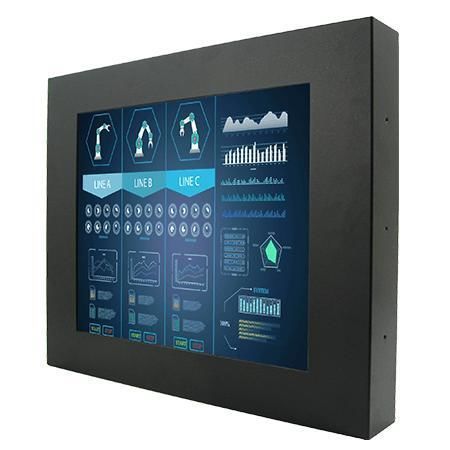

LCD/TFT monitor S17L500-RMM1

resistive touch screenfor displaysfor HMI interface

Key features

• 17-inch rear mount display, 1280 x 1024
• VGA (standard) and HDMI/DVI (optional) inputs
• Resistive touch standard; protection glass or SAW touch optional
• Rear mount with VESA and panel-mount options

Certifications
CE, FCC

Overview
Designed for industrial and OEM environments, the S17L500-RMM1 provides a fully enclosed rear-mount solution for factory automation, control consoles, self-service kiosks and ATMs where secure, integrated displays are required.

Touch and surface options
Flexible surface configurations: resistive touch as standard, optional protection glass without touch, or optional SAW touch to meet operator and environment requirements.

Interfaces and integration
Standard VGA plus optional HDMI and DVI inputs enable straightforward integration with embedded boards and industrial systems. 1x USB for touch connectivity is included.

Rear installation
Engineered to be fixed from the rear side in a console or cabinet; supports VESA and panel mounting and is suitable for enclosed or rack-mounted installations.

Applications
Intended for operator HMI, kiosk HMIs, control centers and other industrial/commercial installations that require a sealed rear-mounted display.

Technical specifications

• Model: S17L500-RMM1
• Display size: 17.0 inches
• Resolution: 1280 x 1024
• Panel brightness: 350 nits
• Contrast ratio: 1000:1
• Viewing angles: 85/85/80/80 (typ.)
• Colors: 16.2M
• Active area: 337.920 x 270.336 mm
• Touch/Glass: Resistive (default); Protection glass w/o touch (opt); SAW touch (opt)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
• IO: USB: 1 x USB for touch; Video: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) optional; 2 x speakers optional
• Dimensions: 480 x 340 x 61 mm
• Mounting: VESA mount / Panel mount
• Enclosure: Metal; Cooling: Fanless design
• Power: 12V DC input (24V DC optional)
• Controls: 5 keys: -, +, Power, Esc, Enter
• Accessories included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC-DC adapter; power cord; manual; VESA screws (varies by product)
