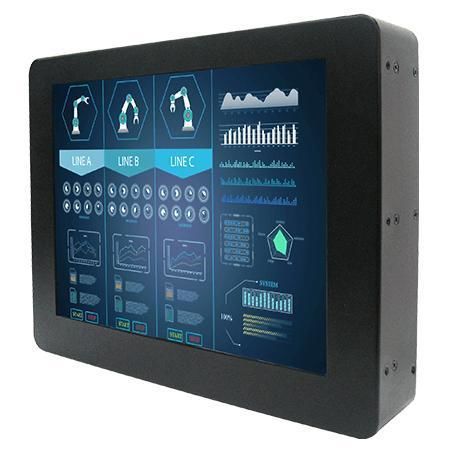

LCD monitor R10L600-RMP1

resistive touch screenindustrialfor industrial machines

Overview
The R10L600-RMP1 is a 10.4-inch rear-mount display designed for industrial and OEM integration. It provides a 800 x 600 resolution, metal enclosure and fanless design suited for installation inside cabinets, consoles or racks where rear-side mounting is required.

User Interaction & Integration
Surface options include resistive touch (default), protection glass without touch (optional) and SAW touch (optional). Video interfaces support VGA (default) and HDMI/DVI (optional). Touch functionality is available via a dedicated USB port. Physical controls include five front buttons for local operation.

Key Features

• 10.4-inch, 800 x 600 rear-mount display
• VGA (standard) and HDMI (optional) video inputs
• Rear mounting compatible with VESA and panel mount installations
• Metal enclosure and fanless cooling

Certifications

• CE
• FCC

Applications

• Factory automation consoles and operator HMIs
• Control centers and industrial panels
• Self-service kiosks and ATMs
• OEM embedded systems requiring rear-mount displays

Accessories & Optional Items

• Included: VGA cable, HDMI cable, 100~240V AC-to-DC adapter, power cord, manual, VESA screws (may vary)
• Optional: Remote controller; alternative power input (24V DC)

Technical specifications

• Model: R10L600-RMP1
• Size: 10.4 inches
• Resolution: 800 x 600
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Panel Brightness: 600 nits
• Contrast Ratio: 400:1
• View Angles: 70, 70, 70, 60
• Display Color: 262K Colors
• Active Area: 211.2 x 158.4 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for touch
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5 mm) (Optional); 2 x speaker (Optional)
• Dimension (mechanical): 800 x 210 x 50 mm
• Weight: 2 kg
• Mounting: VESA mount / panel mount
• Enclosure: Metal
• Cooling System: Fanless design
• Power Rating: 12V DC input (24V DC optional)
• Control Buttons: 5 keys: -, +, Power, Esc, Enter
