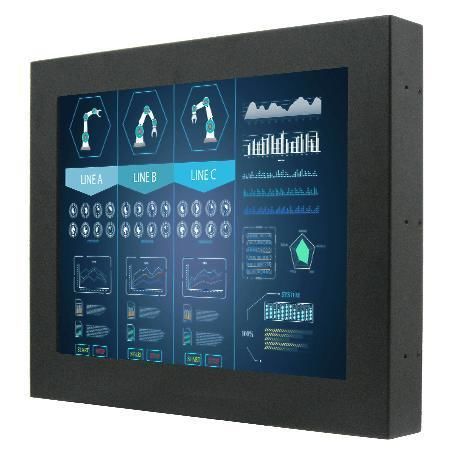

LCD monitor R15L600-RMC3

touch screenresistive touch screenindustrial

Overview
The R15L600-RMC3 is a 15.0-inch rear-mount industrial display designed for embedded, OEM and industrial control environments. Engineered for rear-side installation in consoles, cabinets and racks, it supports VESA and panel mounting and is suitable for factory automation, operator HMIs, kiosks and ATMs.

Key features

• 15.0-inch LCD, 1024 x 768 resolution
• VGA input standard; HDMI and DVI optional
• Rear mount design for enclosed installations
• VESA mount and panel-mount support; metal enclosure; fanless design

Touch & operation
Flexible surface options to meet application requirements: default Resistive Touch Screen; optional Protection Glass without touch function; optional SAW (Surface Acoustic Wave) touch. Touch functionality connects via USB (1 x USB port when equipped).

Interfaces & integration
Standard interfaces enable easy integration with embedded systems: VGA (default), HDMI (optional) and DVI (optional). Optional audio line-in (3.5 mm) and internal speakers available. Power input standard 12V DC; 24V DC optional.

Installation & mounting
Designed for rear-side fixation: the unit is fully enclosed and secured from the back inside consoles or cabinets. Supports VESA mount and panel mount for flexible installation scenarios; includes mounting hardware depending on configuration.

Certifications & environment
Certified to CE and FCC. Operating range designed for industrial environments: operating humidity 10%–90% RH non-condensing; operating temperature 0°C to 50°C; storage -10°C to 60°C.

Applications
Intended for OEM, industrial automation, control consoles, self-service kiosks, ATMs and other embedded systems requiring rear-mount installation and industrial-grade construction.

Accessories & power
Typical accessories included: 1 x VGA cable, 1 x HDMI cable, 100–240V AC to DC adapter, power cord, manual and VESA screws (varies by product). Optional accessories: remote controller, additional I/O options.

Technical specifications

• Display size: 15.0 inches
• Resolution: 1024 x 768
• Touch / glass: Resistive Touch Screen (default); Protection Glass w/o Touch Function (optional); SAW Touch (optional)
• Panel brightness: 300 nits
• Contrast ratio: 2000:1
• Viewing angles: 88, 88, 88, 88
• Display color: 16.2M colors
• Active area: 304.1 x 228.1 mm
• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
• USB: 1 x USB for touch (when equipped)
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: audio line-in (3.5 mm) optional; 2 x speakers optional
• Dimensions: 380 x 311 x 51.3 mm
• Mounting: VESA mount / panel mount
• Enclosure: metal; fanless design
• Included accessories: VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional accessory: remote controller (varies by product)
• Power rating: 12V DC input (24V DC optional)
• Controls: 5 keys: -, +, Power, Esc, Enter
