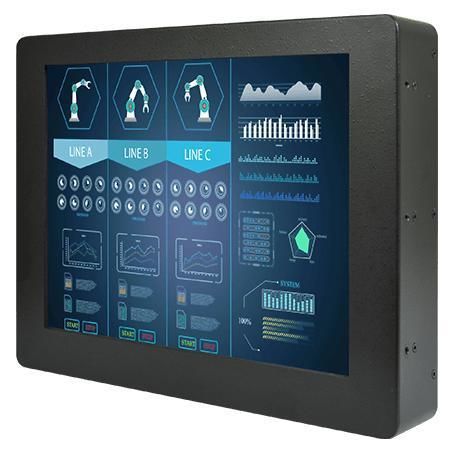

LCD monitor R12L600-RMM2

resistive touch screenindustrialfor HMI interface

Overview
R12L600-RMM2 is a 12.1-inch rear-mount display engineered for embedded, commercial and industrial applications including factory automation, control consoles, self-service kiosks and ATMs. Designed for fully enclosed rear installation in cabinets or racks, it supports VESA and panel mounting for secure integration.

Highlights

• 12.1-inch, 1024 x 768 rear-mount display
• VGA (standard) and HDMI/DVI (optional) video inputs
• Panel mount and VESA mount compatible
• Panel brightness: 500 nits

Key Product Features

• Flexible surface options: default Resistive Touch Screen; optional Protection Glass (non-touch), SAW touch and other surface variants.
• Choice of touchscreen operation or non-touch cover glass to meet operator requirements in industrial environments.
• Standard video interfaces for straightforward integration with embedded boards and systems.
• Rear-side installation for fully enclosed mounting in cabinets/racks with a small bezel for simplified integration.
• Fanless metal enclosure with VESA and panel-mount options for robust industrial operation.
• Multiple configuration options for embedded computing platforms and I/O modules to match performance and power needs.

Certifications

• CE
• FCC

Additional Product Notes
Standard I/O and expansion options include serial ports, USB, Ethernet, audio I/O and video outputs to support second monitors. The product is positioned as a modular, long-life-cycle industrial touch display suitable for integrators and value-added resellers.

Accessories & Technical Specifications

• Model: R12L600-RMM2
• Size: 12.1 inches
• Resolution: 1024 x 768
• Touch / Glass: Resistive Touch Screen (default); Protection Glass w/o Touch (optional); SAW Touch (optional)
• Panel Brightness: 500.0 nits
• Contrast Ratio: 1000:1
• View Angles: 89/89/89/89
• Display Color: 16.2M colors
• Active Area: 245.76 x 184.32 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for touch screen
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) (optional); 2 x speaker (optional)
• Dimension: 340 x 240 x 50 mm
• Mounting: VESA mount / Panel mount
• Enclosure: Metal, fanless design
• Power: 12V DC in (standard); 24V DC in (optional)
• Controls: 5 keys: -, +, Power, Esc, Enter
• Standard accessories: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
• Optional accessories: remote controller (varies)
