LCD monitor R06L200-RMA1WT

resistive touch screenindustrialfor digital signage

Overview

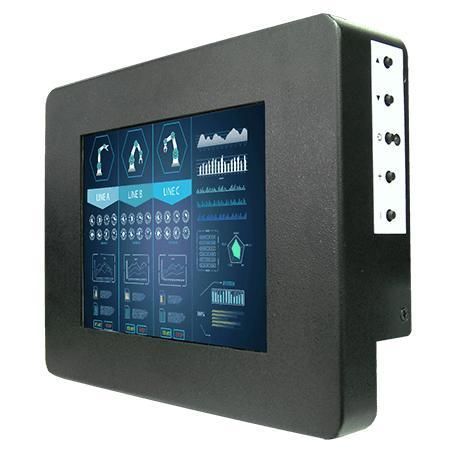

The R06L200-RMA1WT is a 6.5 in rear-mount wide temperature display engineered for industrial, kiosk and embedded applications. It delivers high panel brightness and multiple signal interfaces for integration in factory automation, control consoles, self-service kiosks, ATMs and OEM systems.

Key features

• 6.5 in wide temperature display, 640 x 480 resolution
• VGA input (default); HDMI and DVI optional
• Rear-mount design with VESA and panel mount support
• Operating temperature range: -20 to 60 °C
• Panel brightness: 700 nits; Contrast ratio: 600:1
• Metal enclosure with fanless cooling

Certifications

• CE
• FCC

Touch & surface options
Optional resistive touchscreen or protection glass without touch function to meet different operator and system requirements.

Interfaces & integration

• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• USB: 1 x USB for touch functionality
• Audio: Audio line in (3.5 mm) optional; 2 x speakers optional

Installation & mounting
Fully enclosed rear-fix design for secure installation inside consoles, cabinets or racks; supports VESA mounting and panel installation for OEM integration.

Technical specifications

• Display Size: 6.5 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass w/o Touch Function (Optional)
• Resolution: 640 x 480
• Panel Brightness: 700 nits
• Contrast Ratio: 600:1
• View Angles: 80, 80, 70, 70
• Display Color: 16.2M Colors
• Active Area: 132.48 x 99.36 mm
• Operating Humidity: 30% to 90% RH, Non-Condensing
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -25°C to 65°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 210 x 160 x 45 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (Varies by product)
• Optional Accessory: Remote Controller (Optional, Varies by product)
• Power Rating: 12V DC input
• Control Buttons: 5 Keys: -, +, Power, Esc, Enter
