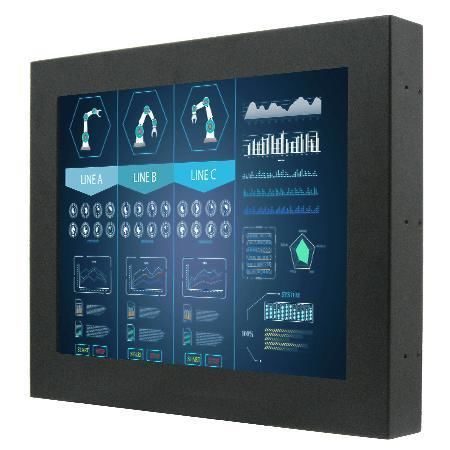

LCD monitor R15L100-RMA1

resistive touch screenindustrial15"

Overview

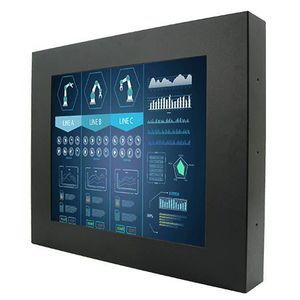

R15L100-RMA1 is a 15.0-inch rear-mount display designed for embedded, commercial and industrial applications. It is suited for factory automation, control consoles, self-service kiosks, ATMs and other enclosed installations. Supports rear mounting and VESA mounting for integration into cabinets and consoles.

Key Features

• 15.0-inch rear-mount display, 1024 x 768 resolution
• VGA (default) and HDMI input (optional)
• Rear-mount / panel-mount and VESA support
• Metal enclosure and fanless design

Certifications

• CE
• FCC

Performance & Durability
Designed to meet performance and durability requirements for industrial and OEM environments. Suitable for fully enclosed installations and continuous operation in controlled industrial conditions.

Touchscreen and Surface Options
Offers flexible surface selections: resistive touch screen (default), protection glass without touch (optional) and SAW touch (optional) to meet different operational needs.

Signal Interfaces
Provides VGA (default) and optional HDMI/DVI interfaces for easy integration with embedded boards and systems. USB for touch interface is included.

Easy Rear Installation
Built to be fixed from the rear inside a cabinet or rack. Supports VESA mount and panel mount for varied installation scenarios.

Applications
Rear-mount design secures the display from the back with no exposed panel edges, making it suitable for operator HMIs, industrial control consoles and self-service kiosks in enclosed environments.

IO, Accessories & Power

• USB: 1 x USB for touch
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: line-in 3.5 mm (Optional); 2 x speakers (Optional)
• Included accessories: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional accessories: remote controller (varies)
• Power rating: 12V DC input (24V DC optional)

Technical specifications

• Model: R15L100-RMA1
• Size: 15.0 inches
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Resolution: 1024 x 768
• Panel Brightness: 350 nits
• Contrast Ratio: 800:1
• View Angles: 80, 80, 70, 80 (deg)
• Display Color: 16.2M Colors
• Active Area: 304.128 x 228.096 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 440 x 311.5 x 54.8 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies)
• Optional Accessory: Remote Controller (varies)
• Power Rating: 12V DC input (24V DC input optional)
• Control Buttons: 5 Keys: -, +, Power, Esc, Enter
