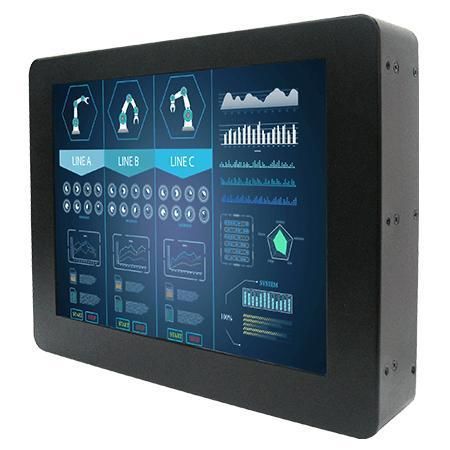

LCD monitor R10L100-RMA1WT

resistive touch screenindustrialfor industrial machines

Overview
Rear-mount 10.4-inch industrial LCD monitor designed for OEM and industrial applications requiring enclosed, secure installations in cabinets, consoles and kiosks. Suitable for factory automation, control centers, ATMs, POS and self-service systems.

Key Features

• 10.4 inches, 800 x 600 resolution
• VGA (standard) and HDMI (optional) inputs
• Rear-mount design for fully enclosed installation
• VESA and panel mount support
• Wide operating temperature: -20 ~ 60°C
• 400 nits panel brightness

Certifications

• CE
• FCC

Highlights and Functional Description
Supports resistive touch screen by default, with optional protection glass without touch or SAW touch. Metal enclosure and fanless design improve reliability in industrial environments. HDMI and VGA interfaces enable straightforward integration with embedded boards and systems; DVI available as an option. Rear-mount form factor allows secure fixing from the rear in cabinets, racks or consoles while enabling VESA-mounted desktop/stand configurations when required.

Accessories
Standard accessories: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual and VESA screws (varies by product). Optional accessories: remote controller (varies by product).

Applications
Intended for operator control HMI, kiosks and self-service applications, POS, building automation and other industrial automation scenarios requiring a rear-mount, wide-temperature display.

Specifications

• Model: R10L100-RMA1WT
• Display size: 10.4 inches
• Resolution: 800 x 600
• Touch / Glass: Resistive Touch Screen (default); Protection Glass w/o Touch (optional); SAW Touch (optional)
• Panel Brightness: 400 nits
• Contrast Ratio: 700:1
• View Angles: 80, 80, 70, 60 (degrees)
• Display Color: 16.2M colors
• Active Area: 211.2 x 158.4 mm
• Operating Humidity: 30% to 90% (non-condensing)
• Operating Temperature: -20 ~ 60°C
• Storage Temperature: -25 ~ 65°C
• Certifications: CE, FCC
• USB Port: 1 x USB for touch screen
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) optional; 2 x speaker optional
• Dimension (W x H x D): 300 x 220 x 50 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal
• Cooling System: Fanless design
• Power Rating: 12V DC input (includes AC to DC adapter)
• Buttons / Controls: 5 keys: -, +, Power, Esc, Enter
• Accessories included: VGA cable, HDMI cable, AC to DC adapter (100~240V), power cord, manual, VESA screws (varies)
• Optional accessory: Remote controller (optional, varies by product)
