High-voltage hipot tester UHV-316N

DCACelectrical conformity

Product Introduction

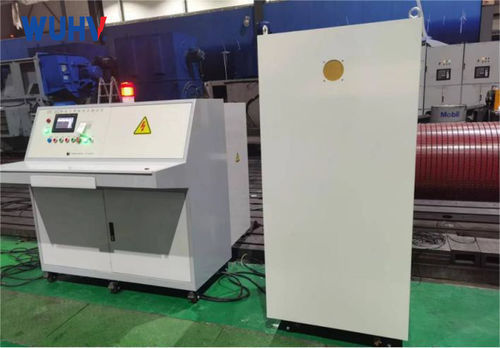

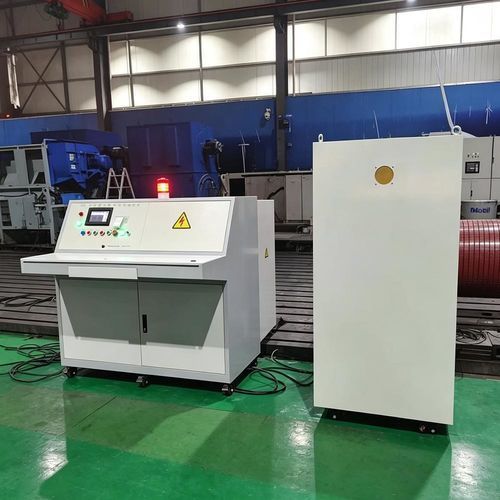

The UHV-316N Intelligent Power-Frequency Withstand Voltage Tester is designed for power-frequency dielectric strength testing of single-phase and three-phase AC/DC motors, transformers and electrical coils. The instrument meets applicable national and industry technical requirements. It offers comprehensive functions, straightforward operation and built-in safety protections. Output voltage and capacity can be customized for special requirements.

Product Features

• User interface: Color LCD touch screen with guided prompts and self-diagnosis for intuitive operation.
• Parameter storage: Multiple storage groups to save distinct test parameter sets and results.
• Real-time monitoring: Live display of measured values and real-time curves for voltage and leakage current.
• Voltage regulation & protection: Electronic voltage regulation with comprehensive overvoltage protection.
• Preset & stable output: Preset output voltage and an approaching-regulation algorithm that maintains stable voltage during timing.
• Overcurrent protection: Audible/visual alarm, automatic high-voltage cutoff and regulator reset if leakage current exceeds the set threshold.
• Grounding detection: Real-time grounding protection that prohibits or terminates tests when grounding is unreliable.
• Integrated printer: Built-in micro printer for immediate printing of stored test data and results.

Product Parameters
Model: UHV-316N
Max. output voltage: 30kV
Voltage output range: 0.01–30kV, continuously adjustable
Voltage measurement range: (5–100)% of 30kV
Voltage measurement accuracy: (5% of reading + 1 digit); resolution: 0.01kV
Max. output current: 1000mA
Current output range: 0.01–1000mA, continuously adjustable
Leakage current measurement range: (5–100)% of 100 (automatic range conversion)
Leakage current accuracy: (5% of reading + 1 digit); resolution: 0.01mA
Output capacity: 30kVA
Output circuit: Single circuit (one set of output terminals)
Power supply: 220V (three-phase) ±5%, 50Hz ±5%
Parameter storage groups: 36 groups
Record storage start point: 1–240 groups (storage disabled when set to 0)
Electrical safety: Insulation resistance ≥20MΩ between power input terminal and non-live metal enclosure; dielectric strength withstands 1.5kV/50Hz for 1 min without flashover or breakdown
Operating ambient: 0~40°C; relative humidity ≤80%
Structure: Combined cabinet

Characteristics / Technical specifications

• Model: UHV-316N
• Maximum output voltage: 30kV
• Maximum output current: 1000mA
• Output capacity: 30kVA
• Voltage range: 0.01–30kV (continuous)
• Current range: 0.01–1000mA (continuous)
• Storage: 36 parameter groups; record storage 1–240 groups
• Power supply requirement: 220V (three-phase) ±5%, 50Hz ±5%
• Operating conditions: 0~40°C, RH ≤80%
