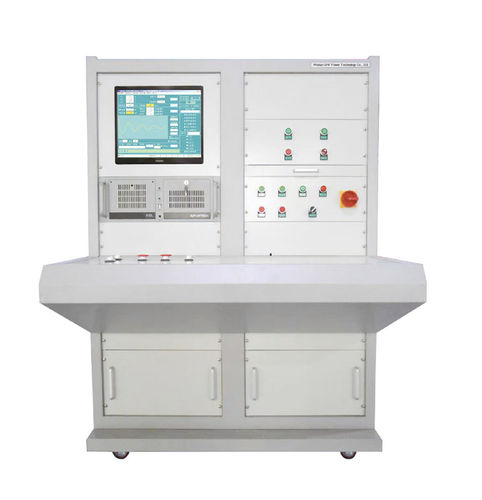

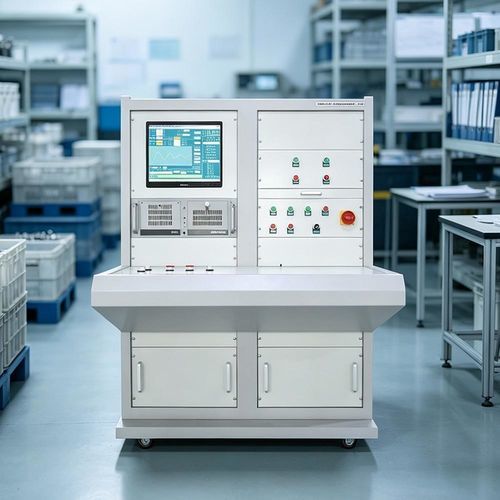

Voltage test bench UHV-316D

currentrotation directionresistance

Product introduction:
The UHV-316D stator test bench is designed for testing single-phase and three-phase generator stators and supports 3‑wire, 6‑wire, 9‑wire and 12‑wire winding configurations. It uses a 2‑channel wiring method and is suitable for testing 3‑wire and 6‑wire stators of new-energy motors up to frame H355.

Standard test items:

• DC resistance test
• Insulation resistance test (DC 500 V)
• Inter-turn insulation test
• Power-frequency withstand voltage test (AC up to 5000 Vac)
• Winding current balance test
• Rotation direction test

Optional test items:

• Inductance test
• Current balance test
• Magnetic field rotation direction test

Product characteristics:

• Simultaneous result display with built-in data storage and print functions
• Foot-operated safety switch for operator protection
• Front-end test fixture suitable for medium and small stators
• High-speed measurement designed for mass-production environments

Product parameters:
Test item — Measuring range — Accuracy — Notes
DC Resistance — 0.01–2000 Ω — Class 0.2 — Automatic temperature compensation; adjustable test time
Insulation Resistance — DC 500 V — 1–500 MΩ — Class 5.0 — Automatic background insulation deduction; adjustable measurement time
Inter-turn Test — DC 400–5000 Vp — Class 2.0 — Rise time 0.2 μs; detection sensitivity down to 1/400 turns
Power Frequency Withstand Voltage — AC 400–5000 Vac — — Test time adjustable 1–60 s; automatic leakage deduction and breakdown protection
Leakage Current — 1–100 mA — — Automatic background leakage deduction

Technical specifications:

• Model: UHV-316D
• Supported winding types: 3, 6, 9, 12 wires; 2‑channel wiring method for 3/6‑wire stators
• Applicable frame size: up to H355
• Measurement functions: DC resistance, insulation resistance, inter-turn, power-frequency withstand voltage, current balance, rotation direction
• Data handling: simultaneous display, built-in storage and print
• Safety: foot-operated safety switch; breakdown protection during high-voltage tests
