Product Introduction:

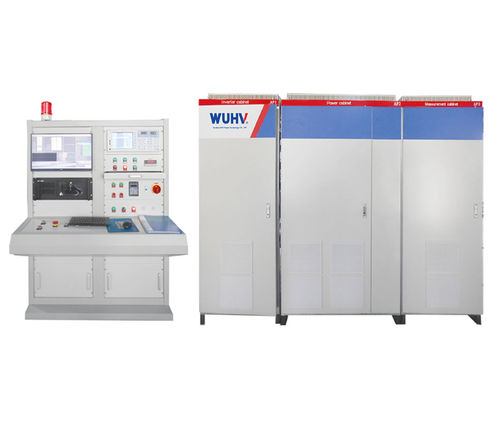

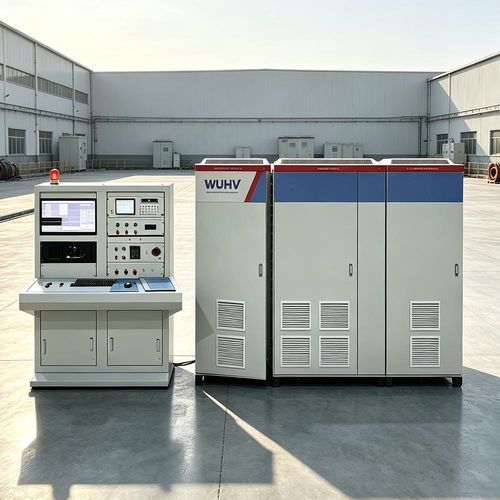

The UHV-316C motor comprehensive test bench is designed for factory inspection of single-phase and three-phase small-to-medium asynchronous motors. It integrates a variable-frequency test power supply and automates measurements and pass/fail judgment according to stored standard parameters.

Main functions:

• DC resistance measurement
• Insulation resistance measurement
• Surge (inter-turn) test
• Electrical parameter measurement (voltage, current, frequency)
• Power-frequency withstand voltage and leakage current test

Key features:

• Real-time display of results with local data storage and printout capability
• Standard parameter storage for automated acceptance and quick comparison
• Simultaneous testing of multiple motors to increase throughput
• High accuracy, fast cycle time and strong EMI immunity for reliable factory use
• Windows-based automatic pass/fail judgment and modular design for simple maintenance and calibration

Product Parameters:
Test item — Measuring range — Accuracy — Description
Temperature — -40~150℃ — ±1℃ — Ambient temperature measurement
DC Resistance — 0.01~2000Ω — Class 0.2 — 6 measuring ranges, automatic temperature compensation
Insulation Resistance — DC 500V / 1~500MΩ — Class 5.0 — Automatic background deduction
Inter-turn Test — 400~3000Vp — Class 5.0 — Wavefront time 0.2μs; detects adjacent turn-to-turn faults at 1/200 turns
Power Frequency Withstand Voltage — AC 400~3000V — Class 2.0 — Test duration adjustable 1~60 s
Leakage Current — 1~100mA — — Automatic background deduction; breakdown protection
Electrical Parameter Test — Current: 0.1A~50A / 50A~200A / 100A~1000A — Class 0.5 — Multiple current ranges
Electrical Parameter Test — Voltage: 30~750V — Class 0.5 —
Electrical Parameter Test — Frequency: 50/60Hz (asynchronous) — — —

Technical specifications:

• Model: UHV-316C
• Application: Factory inspection for single-phase and three-phase small and medium asynchronous motors
• Test power supply: Integrated variable-frequency power supply
• Data handling: Real-time display, local storage and print recording
• Automation: Stores standard motor parameters and performs automatic pass/fail judgment
• Design: Modular for easy maintenance and calibration
• Measurement ranges and accuracy: see 'Product Parameters' above
