Voltage test bench UHV-316Q

powercurrentspeed

Product introduction

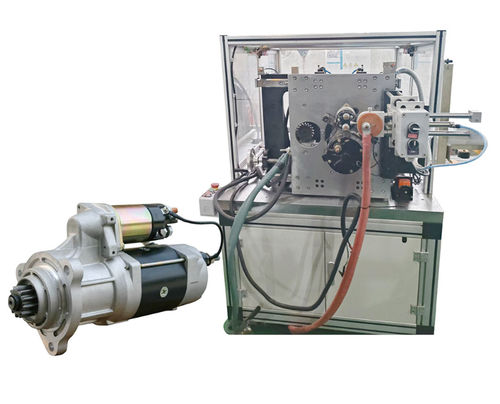

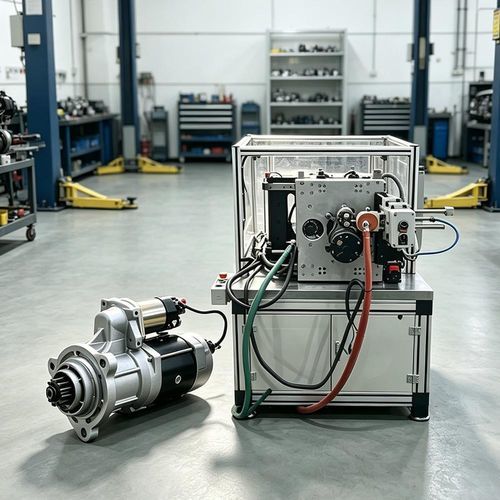

The UHV-316Q starter motor test bench is a fully automated, computer-controlled test console for evaluating starter motor performance. The bench uses a servo system as the loading source to deliver high control accuracy and stable loading. The complete system comprises a performance test bench, a measurement and control cabinet, and an analog battery power supply. It is intended for testing a wide range of automotive starter motors.

Test items

• Pull-in and release voltage test (voltage, current)
• No-load test (voltage, current, speed)
• Load test (voltage, current, power curve)

Product parameters
Technical parameters (table)
Voltage: 12-32 VDC ±0.5%
Current: 0-3000 A ±0.5%
No-load speed: 0-15000 rpm ±0.5%
Load speed: 0-3000 rpm ±0.5%
Starter motor torque: 0-250 N·m ±0.5%
Starter motor power: 2-10 kW

Key specifications

• Loading source: servo system for high control accuracy and stable performance
• System composition: performance test bench; measurement and control cabinet; analog storage battery power supply
• Application: suitable for testing various automotive starter motors
• Voltage range: 12-32 VDC ±0.5%
• Current range: 0-3000 A ±0.5%
• No-load speed range: 0-15000 rpm ±0.5%
• Load speed range: 0-3000 rpm ±0.5%
• Starter motor torque range: 0-250 N·m ±0.5%
• Starter motor power range: 2-10 kW
