Torque test bench UHV-316L

temperatureleakresistance

Product Introduction:

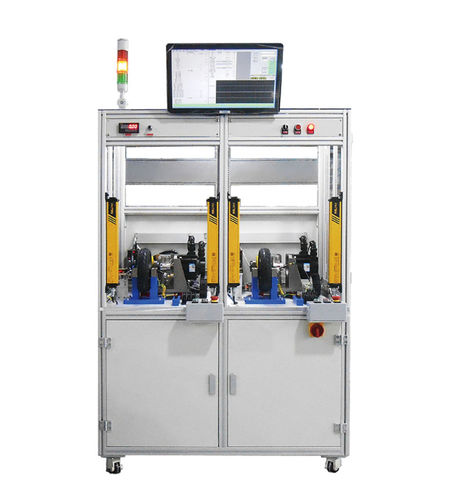

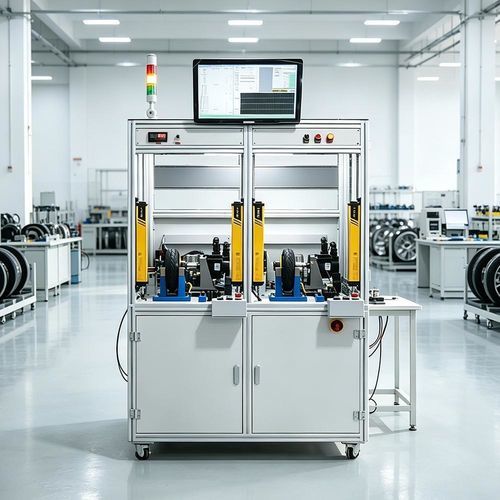

The UHV-316L Automatic Hub Motor Test Bench is designed for final electrical testing of permanent-magnet hub motors without tires, using the valve hole for dynamometer connection. It automatically evaluates compliance with predefined control limits for each test item and produces comprehensive test reports.

Product Characteristics:

• Automatic test sequence for DC resistance, insulation resistance, no-load test, load test and other key electrical and performance parameters.
• Automatic quality judgment based on configured limits; manual data entry supported when required.
• Integrated report generation and data storage with query functions for traceability.
• Single-station configuration: tests one motor at a time; maximum DC test current ≤ 300 A.
• Safety features: interlock protection, audible/visual alarm and emergency stop.
• Built-in code scanning to retrieve product parameters; MES-compatible data export/storage.
• AC motor used as loading device with linearly adjustable torque and interchangeable mounting brackets for wide model compatibility.
• Quick-release motor mount adapted to motors with valve-hole dynamometer connection.

Test Items:

• Visual inspection: manual check of assembly, cleanliness and absence of damage before mounting.
• No-load test: measures voltage, current, speed, rotation direction and power; manual noise check available.
• Load performance test: torque-speed curve, power-speed curve, efficiency map, temperature-rise tests under different duty cycles and selectable overload tests.
• Locked-rotor test.
• Regenerative braking test.
• Insulation resistance test.
• Back EMF test.
• Power-frequency withstand voltage test.

Product Parameters:
Test item | Measurement range | Accuracy | Notes
DC Resistance | 0.01~1000 Ω | Class 0.2 |
Insulation Resistance | DC 500 V / 1~500 MΩ | Class 5.0 | Automatic background deduction
Power-Frequency Withstand Voltage | AC 400~2000 V | Class 2.0 | Test time 1~60 s adjustable
Leakage Current | 1~100 mA | | Automatic background deduction; breakdown protection
Electrical Measurement - Current | DC 1 A~300 A | Class 0.5 | Max DC test current ≤ 300 A
Electrical Measurement - Voltage | DC 10~96 V | |
Loading Test - Speed | 0~1000 rpm | Class 0.5 |
Loading Test - Torque | 1~300 Nm | |

Technical specifications:

• Model: UHV-316L
• Application: Final electrical testing of permanent-magnet hub motors (without tire, valve-hole connection)
• Maximum DC test current: ≤ 300 A
• DC resistance range: 0.01~1000 Ω (Class 0.2)
• Insulation resistance: DC 500 V, 1~500 MΩ (Class 5.0) with automatic background deduction
• Power-frequency withstand voltage: AC 400~2000 V (Class 2.0), test time 1~60 s adjustable
• Leakage current measurement: 1~100 mA with background deduction and breakdown protection
• Electrical measurement ranges: current DC 1~300 A (Class 0.5); voltage DC 10~96 V
• Loading test ranges: speed 0~1000 rpm (Class 0.5); torque 1~300 Nm
• Single-station design with AC motor loading and linearly adjustable torque
• Safety: interlock protection, audible/visual alarm, emergency stop
• Data functions: automatic acquisition, software judgment, automatic report generation, data storage and query, MES support
• Extras: built-in code scanning; interchangeable motor mounting brackets for wide compatibility
