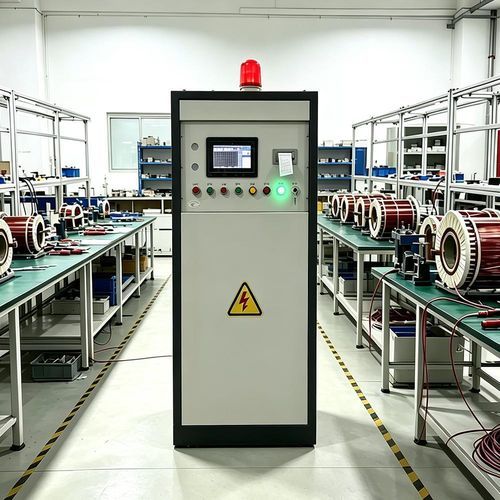

High-voltage hipot tester UHV-316Z

multi-pointelectrical conformity

Product Introduction
The UHV‑316Z Inter‑Turn Impulse Withstand Voltage Tester is a professional instrument for detecting insulation defects between layers and turns in coil-based products such as electric motors. It uses surge waveform comparison and applies controlled high‑voltage surge pulses to identify non‑coincident waveforms and localized faults.

Key Features

• Intuitive HMI: Color LCD touch screen with guided prompts and touch‑key control for fast parameter entry.
• Self‑Diagnosis & Guided Operation: Built‑in self‑check and step‑by‑step guidance to reduce setup errors.
• Extensive Parameter Storage: Up to 72 parameter groups including pre‑input standard waveforms for repeatable testing.
• Automated Timed Measurement: Scheduled, timed tests with automatic sequence control and real‑time display of test voltage and duration.
• Real‑Time Multi‑Phase Waveform Display: Simultaneous color‑coded waveform display for all measured phases to facilitate comparison.
• Automated Analysis & Archiving: Immediate waveform analysis, phase‑to‑phase error reporting and automatic storage of up to 1,000 test records.
• Adjustable Waveform Scale: On‑screen scaling for different object sizes and sensitivities.
• Single‑Circuit Support (≥10 kV): Pre‑store standard waveforms for formed coil testing and automated comparison.
• Grounding Protection: Continuous grounding detection that prevents or aborts tests if earthing is unreliable.
• Site‑Oriented Design: Panel printer and standalone cabinet design for production‑floor use without a separate PC.

Technical Parameters

• Test Voltage: continuously adjustable 3.5–35 kV, digital display, accuracy ≤±5%
• Surge Frequency: 6.25 Hz
• Surge Rise Time: 0.1–0.5 μs
• Energy Storage Capacitance / Max Output Energy: 0.047 μF / 28.8 J
• Measuring Time per Phase: 0–99 s, continuously adjustable, digital display
• Measuring Mode: single‑circuit timed phase test
• Waveform Display: color LCD touch screen, simultaneous multi‑phase display
• Judgment Modes: differential area, area difference, frequency difference (combined)
• Parameter Sets: 72 groups
• Test Record Storage: 1000 groups
• Print Output: panel‑mounted micro printer
• Application Scope: single/three‑phase motor windings, rated voltage ≤10.5 kV
• Power Supply: 220 V ±2%, 50/60 Hz; ≥4 kVA
• Structure: free‑standing cabinet
• Operating Temperature: 5–35 °C
• Relative Humidity: ≤75%
• Electrical Safety: insulation resistance (power input to frame) ≥20 MΩ; withstands 1500 V/50 Hz for 1 min without flashover or breakdown

Applications & Safety

• Designed for production, quality control and R&D testing of motor and transformer coil windings.
• Delivers repeatable quantitative judgments for batch testing and manufacturer specifications.
• Integrated safety features (ground detection, dielectric tests and cabinet insulation) ensure operator protection during high‑voltage tests.
• Records and printable reports support traceability and quality documentation.
