Resistance calibration and test bench UHV-316D

rotation directioncalibrationcurrent

Product introduction:

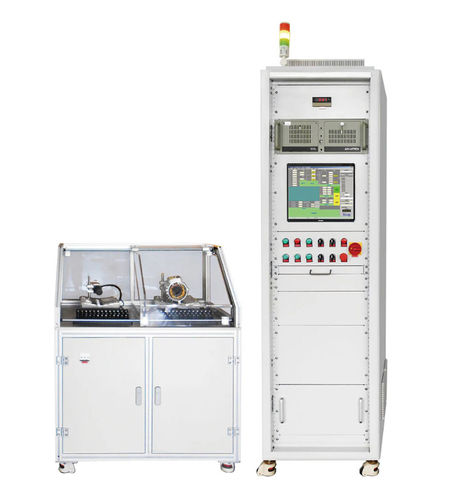

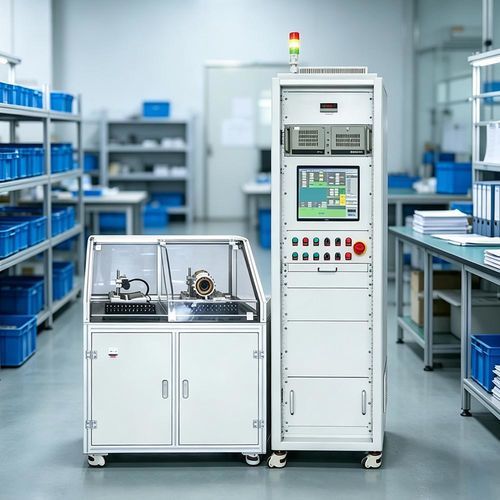

The UHV-316D stator test bench is designed for production and workshop testing of single-phase and three-phase generator stators. It measures 3-, 6-, 9- and 12-wire windings using a 2‑channel wiring method and is suitable for new energy motor stators up to frame H355.

Standard test items:

• DC resistance test
• Insulation resistance test (DC 500 V)
• Inter-turn insulation test
• Power-frequency withstand voltage test
• Winding current balance test
• Rotation direction test

Optional test items:

• Inductance test
• Current balance test
• Magnetic field rotation direction test

Product features:

• Comprehensive result display with simultaneous presentation of all test results, built-in data storage and printout functions
• Foot-operated safety switch for safe and reliable operation
• Front-end test fixture configured for medium and small stators, supporting single- and three-phase testing
• High-speed measurement suitable for high-volume production (e.g., appliance and water-pump motors)

Technical parameters:

• Model: UHV-316D
• Applicable winding types: 3-wire, 6-wire, 9-wire, 12-wire
• Wiring method: 2-channel wiring
• Applicable motor frame size: up to H355
• DC resistance: 0.01–2000 Ω, Accuracy Class 0.2, automatic temperature compensation, adjustable test time
• Insulation resistance: DC 500 V, 1–500 MΩ, Accuracy Class 5.0, automatic background deduction, adjustable measurement time
• Inter-turn test: DC 400–7000 Vp, Accuracy Class 2.0, rise time 0.2 μs, detection down to 1/400 turns
• Power-frequency withstand voltage: AC 400–5000 Vac, test time adjustable 1–60 s
• Leakage current (power-frequency test): 1–100 mA, automatic background deduction and breakdown protection
