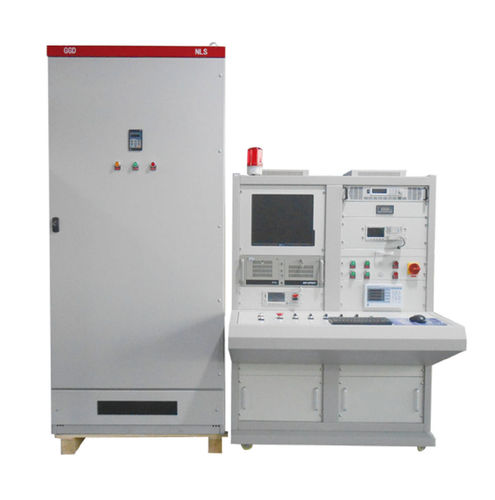

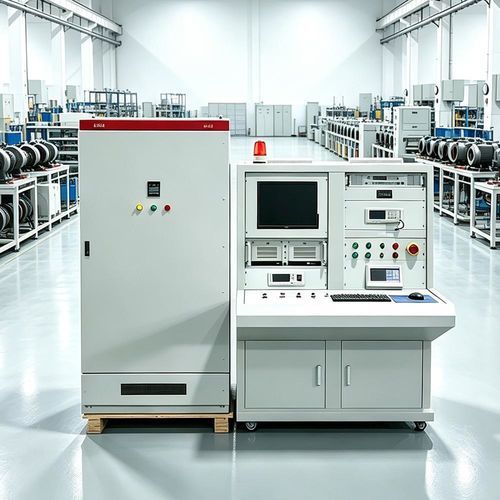

Electric test bench UHV-316C

automaticmotorthree-phase AC system

Product Introduction:
The UHV-316C comprehensive motor test bench is designed for factory inspection of single-phase and three-phase small and medium-sized asynchronous motors. The bench includes a built-in variable-frequency test power supply and automates standard motor acceptance checks.

Product Characteristics:

• Real-time result display with built-in data storage and print recording for traceable test reports.
• Standard parameter storage for quick comparison and automatic pass/fail judgment.
• Multi-motor simultaneous testing to increase throughput during production inspection.
• High-precision measurements with fast cycle times and strong EMI immunity for reliable on-site testing.
• Windows-based software and modular hardware design for easy configuration, maintenance and calibration.

Product Parameters:
Test item | Measuring range | Accuracy | Description
Temperature | -40–150℃ | ±1℃ | Ambient temperature measurement
DC resistance | 0.01–2000 Ω | Class 0.2 | 6 measuring ranges, automatic temperature compensation
Insulation resistance | DC 500 V / 1–500 MΩ | Class 5.0 | Automatic background subtraction
Inter-turn (surge) test | 400–3000 Vp | Class 5.0 | Wavefront time 0.2 μs, automatic adjacent-turn judgment at 1/200 turns
Power-frequency withstand voltage (voltage) | AC 400–3000 V | Class 2.0 | Duration 1–60 s adjustable
Power-frequency withstand voltage (leakage) | 1–50 mA | — | Automatic background subtraction, breakdown protection
Electrical parameter test (current) | 0.1–100 A | Class 0.5 | —
Electrical parameter test (voltage) | 30–750 V | Class 0.5 | —
Electrical parameter test (frequency) | 50/60 Hz (asynchronous) | — | —

Technical specifications:

• Model: UHV-316C
• Rated power range: 0.12 kW–37 kW (single-phase & three-phase)
• Applicable to factory inspection of small and medium-sized asynchronous motors
• Built-in variable-frequency test power supply
• Measurement capabilities: DC resistance, insulation resistance, surge inter-turn, electrical parameters, power-frequency withstand voltage
• Temperature measurement range: -40 to 150℃ (±1℃)
• DC resistance range: 0.01–2000 Ω (Class 0.2), 6 ranges, automatic temperature compensation
• Insulation resistance: DC 500 V, 1–500 MΩ (Class 5.0), automatic background subtraction
• Inter-turn (surge) voltage: 400–3000 Vp (Class 5.0), 0.2 μs wavefront, adjacent-turn judgment at 1/200 turns
• Power-frequency withstand: AC 400–3000 V (Class 2.0), duration 1–60 s settable; leakage 1–50 mA with breakdown protection
• Electrical parameters: Current 0.1–100 A (Class 0.5); Voltage 30–750 V (Class 0.5); Frequency 50/60 Hz
• Features: real-time display, data storage and printing, standard parameter storage, multi-motor testing, Windows-based automatic judgment, modular design
