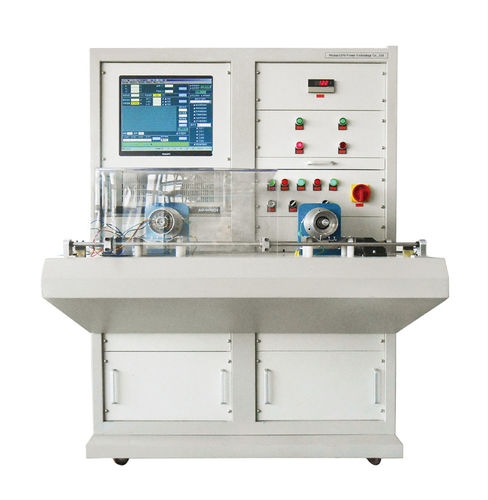

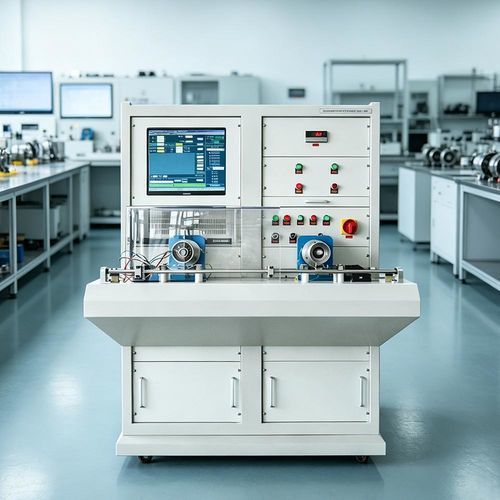

Voltage test bench UHV-316D

leakrotation directioncurrent

Product introduction:
The UHV-316D stator test system is designed for production and R&D testing of single-phase and three-phase generator stators. It supports 3‑wire, 6‑wire, 9‑wire and 12‑wire windings, uses a 2‑channel wiring method and is suitable for testing 3‑wire and 6‑wire stators of new energy motors up to frame H355.

Standard test items:

• DC resistance test
• Insulation resistance test
• Inter-turn insulation (impulse) test
• Power-frequency withstand voltage test
• Winding current balance test
• Rotation direction test

Optional test items:

• Inductance measurement
• Current balance test
• Magnetic field rotation direction test

Product characteristics:

• Simultaneous result display with built-in data storage and printout functions
• Foot-operated safety switch for safe operation
• Front-end test fixture designed for medium and small stators
• High-speed measurement suitable for production lines (home appliance motors, water pump motors, etc.)

Product parameters:
Test item | Measuring range | Accuracy | Performance description
DC Resistance | 0.01 ~ 2000 Ω | Class 0.2 | Automatic temperature compensation; adjustable test time
Insulation Resistance | DC 500 V / 1 ~ 500 MΩ | Class 5.0 | Automatic background insulation deduction; adjustable measurement time
Inter-turn Test | DC 400 ~ 3000 Vp | Class 2.0 | Rise time 0.2 μs; can detect 1/400 turns
Power Frequency Withstand Voltage - Withstand voltage | AC 400 ~ 3000 Vac | — | Test time adjustable 1 ~ 60 s
Power Frequency Withstand Voltage - Leakage current | 1 ~ 100 mA | — | Automatic background leakage deduction; breakdown protection

Technical specifications:

• Model series: UHV-316D
• Supported stator windings: 3‑wire, 6‑wire, 9‑wire, 12‑wire
• Wiring method: 2‑channel wiring
• Applicable motor frame: up to H355 (new energy motors)
• DC resistance range: 0.01 ~ 2000 Ω, Class 0.2, automatic temperature compensation
• Insulation resistance: DC 500 V, 1 ~ 500 MΩ, Class 5.0, automatic background insulation deduction
• Inter-turn test voltage: DC 400 ~ 3000 Vp, Class 2.0, rise time 0.2 μs, detection down to 1/400 turns
• Power-frequency withstand voltage: AC 400 ~ 3000 Vac, test time 1 ~ 60 s adjustable
• Leakage current measurement: 1 ~ 100 mA, automatic background deduction and breakdown protection
• Features: simultaneous results display, data storage and printout, front-end test fixture, foot-operated safety switch, high-speed measurement for mass production
