Temperature test bench UHV-316C

resistancepowercurrent

Product Introduction:

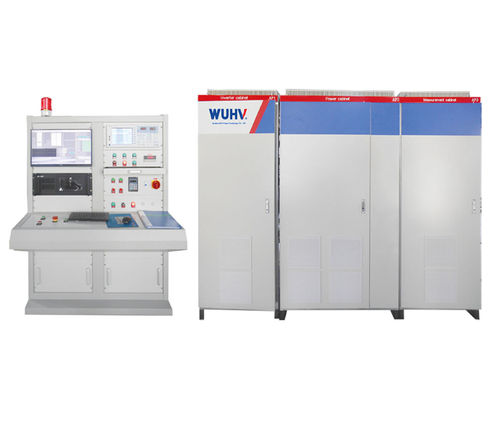

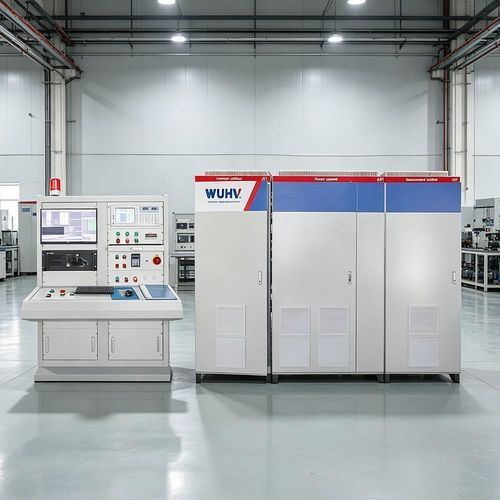

The UHV-316C motor comprehensive test bench is designed for factory inspection of single-phase and three-phase small and medium-sized asynchronous motors. Equipped with an integrated variable-frequency test power supply, it supports automatic evaluation against stored standard parameters for production quality control and incoming inspection.

Functions:

• DC resistance test
• Insulation resistance test
• Surge inter-turn (inter-turn) test
• Electrical parameter measurement (current, voltage, frequency)
• Power-frequency withstand voltage test
• Automatic pass/fail judgment based on stored standards

Product Characteristics:

• Real-time result display with built-in data storage and printout
• Standard parameter database for quick reference and comparison
• Supports simultaneous testing of multiple motors to increase throughput
• High measurement precision, fast test cycle, strong anti-interference performance and user-friendly operation
• Windows-based automatic evaluation and modular hardware design for easy maintenance and calibration

Product Parameters:

• Temperature: range -40~150℃; accuracy ±1℃; ambient temperature measurement
• DC Resistance: 0.01~2000Ω; accuracy Class 0.2; 6 measuring ranges with automatic temperature compensation
• Insulation Resistance: DC 500V / 1~500MΩ; accuracy Class 5.0; automatic background deduction
• Inter-turn (surge) Test: 400~3000Vp; accuracy Class 5.0; wavefront time 0.2μs; detects adjacent turn defects down to 1/200 turns
• Power-frequency Withstand Voltage: AC 400~3000V; accuracy Class 2.0; test duration 1~60s (configurable)
• Leakage Current: 1~100mA; automatic background deduction and breakdown protection
• Electrical Parameter Test - Current: 0.1~100A and 100~400A; accuracy Class 0.5
• Electrical Parameter Test - Voltage: 30~750V; accuracy Class 0.5
• Frequency: 50/60Hz (asynchronous)

Technical specifications:

• Model: UHV-316C
• Applicable motor power range: 0.12kW–160kW
• Integrated variable-frequency test power supply
• Windows-based automatic pass/fail judgment, data storage and printout
• Modular design for simplified maintenance and calibration
