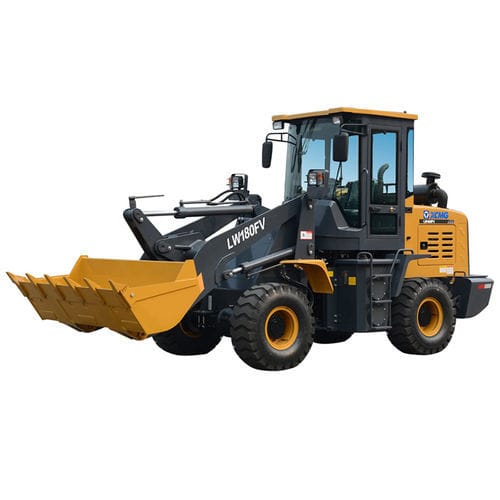

Wheeled loader LW180FV

XCMG mini front loader LW180FV is the latest generation of loaders introduced by XCMG. It adopts international mainstream styling, optimal powertrain matching, and a fully optimized working device. This high-quality, high-efficiency, cost-effective small-sized loader is widely used in housing construction, road maintenance, agriculture, forestry, water conservancy, sand and gravel yards, and other fields, especially for small construction work. Model Features: - Reasonable design with hydraulic mechanical drive and four-wheel drive, providing larger drive force and digging force; small turning radius and agile operation, suitable for narrow working areas. - Z-type bucket linkage, single arm, high pivot lifting cylinder, strong digging force, short working cycle time, and higher working efficiency. - All hydraulic load-sensing steering and single pump valve working hydraulic system with on-demand oil supply, ensuring economic energy-saving. - Cab provides a comfortable working environment and advantageous maintenance conditions. Technical Specifications: - Rated operating load: 1800 kg - Bucket capacity: 0.9-1.1 m³ - Machine weight: 6200 kg - Dump clearance at maximum lift: 2650-2970 mm - Reach at maximum lift: 900-1000 mm - Wheel base: 2300 mm - Tread: 1550 mm - Max. breakout force: ≥58 KN - Hydraulic cycle time-raise: 5 s - Total hydraulic cycle time: ≤8.5 s - Min. turning radius over tyres: 4470 mm - Articulation angle: 35° - Gradeability: 28° - Tyre size: 16/70-20 - Overall machine dimension L*W*H: 5980*2060*2950 mm - Engine Model: YC4D80-T20 - Rated Power/Speed: 58/2400 kW/rpm - Travel speed I-gear (F/R): 0-9/0-9 km/h - Travel speed II-gear (F/R): 0-26/0-26 km/h - Rated Load: 1800kg - Dimension (L*W*H): 5980*2060*2950mm - Type: mini wheel loader - Place of Origin: Xuzhou, Jiangsu, China - Model Number: LW180FV - Brand Name: XCMG - Certification: CE/ISO90001 - Warranty: One Year - After-sales Service: Engineers available to service machinery overseas - Minimum Order Quantity: 1 Unit - Delivery Time: In Stock (Within 7 days), Production (Within 15 to 20 days), Customization (negotiated delivery time) - Shipping: Support Sea freight · Land freight · Air freight - Payment Method: Multiple options supported
