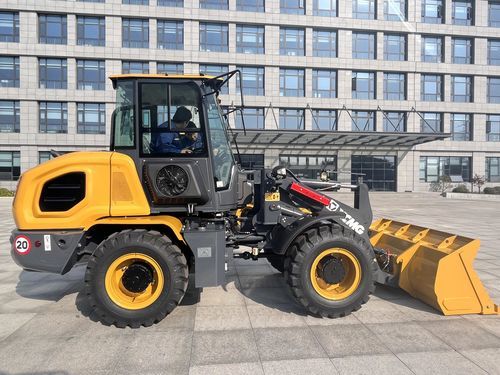

Wheeled loader XC918HST

articulatedcompactswing

Product Summary

• Rated Load: <1 t
• Dimension (L×W×H): 5520×2060×2745 mm
• Type: Wheel Loader
• Place of Origin: XUZHOU, CHINA
• Model Number: XC918HST
• Brand Name: XCMG

Specifications (short)

• Operating weight: 6000 kg
• Model: XC918HST
• Transmission / Drive type: Hydraulic / Hydrostatic

Key Features / Product Details

• 1. Advanced technology — XC918HST adopts hydrostatic transmission; compact, lightweight structure with real-time motor displacement and speed control enabling general walking, constant-travel speed and constant-engine-speed modes, complemented by inching braking for energy-saving during braking.
• 2. Product reliability — Structural components validated by CAE analyses for high safety factor; front and rear frames form an overall heavy-duty frame to resist impact loads. Key components (gearbox, axles, engine, pumps, valves) selected from reliable suppliers.
• 3. Easy maintenance — Front tilting hood (>45°) for access to engine, radiator, hydraulic tank and filters. Rollover cab (~40°) for access to gearbox, drive motor and hydraulic valve. Centralized lubrication and pressure measurement points; vehicle controller and central fuse box arranged for convenient maintenance.
• 4. Comfortable operation — Panoramic cab with organized storage, phone holder, FNR integrated pilot handle and standard heating/cooling A/C. Adjustable seat and steering column; optimized ducting and jack-simulation technology improve operator comfort.
• 5. Flexibility and versatility — Center-hinged swing (9°), ±38° articulated steering and short-tail design for a small turning radius. Standard three-link quick-change hydraulic coupler supports multiple attachments.
• 6. Safety design — Reliable braking system; ROPS/FOPS certified cab; emergency stop switch in cab; pilot lock and quick coupler lock options reduce operational risks.

Shipping & Ordering

• Min Order Quantity: 1 Unit
• Delivery Time: In Stock (Within 7 days); Production (Within 15–20 days); Customization (delivery time to be negotiated)
• Warranty: One Year
• After-sales service: Engineers available for overseas service; online, video and on-site support available
• Shipping support: Sea freight · Land freight · Air freight

Product Parameters
Dimensions:
Overall Length: 5520 mm
Total Length without bucket: 4773 mm
Overall Width: 2060 mm
Overall Height: 2745 mm
Wheel base: 2150 mm
Rear overhang: 1445 mm
Ground clearance: 370 mm
Maximum radius outside: 4602 mm
Radius on the outer edge: 4123 mm
Inside radius: 2163 mm
Articulation angle: 38°
Dumping height: 2660 mm
Dumping reach: 723 mm
Scraping depth: 90 mm
Operating weight: 6000 kg
Bucket capacity: 1 m³
Engine system:
Max. engine output: 53.3 kW @ 2500 rpm
Main performances:
Max. digging force (bucket): 58 kN
Max. traction force: 52 kN
Max. lifting height lifting capacity: 3000 kg
Bucket tipping loads (straight): 4582 kg
Bucket tipping loads (full turn): 3850 kg
Drive type / drive system: Hydrostatic
Max articulation: ±38°
Max oscillating: ±9°

Product Images
Multiple product images available showing the XC918HST from different angles (gallery images named XC918HST).
