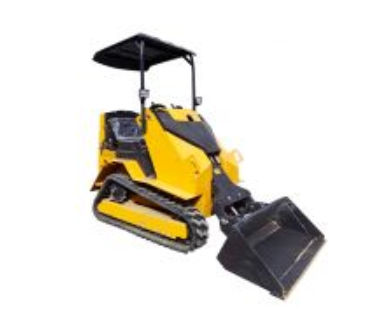

Compact track loader MT02

Product overview

• XCMG skid steer loader MT02 for compact material handling and light earthmoving on industrial and construction sites.

Key specifications

• Model: MT02
• Brand: XCMG
• Rated load: 200 kg
• Operating/working weight: ~900 kg
• Bucket capacity: 0.1 m³
• Overall dimensions (L×W×H): 2332×1050×1300 mm (as provided)
• Max digging force: 3.5 kN
• Max traction force: 6.78 kN
• Max gradeability: 25°
• Engine model: R420 — Rated power 9.7 kW, air-cooled, 1 cylinder, displacement 420 mL, max torque 29 Nm @ 2500 rpm
• Warranty: One Year
• Min order quantity: 1 Unit
• Delivery: In stock (within 7 days) · Production (15–20 days) · Customization (negotiated)
• Shipping: Sea, Land, Air

Technical parameters (detailed)
Parameter : Unit : MT02
Rated Load : kg : 200
Operating Weight : kg : 900
Max. Digging Force : kN : 3.5
Max. Traction Force : kN : 6.78
Max. Gradeability : ° : 25
Overall Dimensions : mm : 2332*1050*1300 mm
Engine - Model : : R420
Engine - Rated Power : kW : 9.7
Engine - Emission Standard : : EPA
Engine - Rated Speed : rpm : 3600
Engine - Cooling Method : : Air-cooled
Engine - Cylinder Number : : 1
Engine - Cylinder Bore : mm : 90
Engine - Stroke : mm : 66
Engine - Displacement : mL : 420
Engine - Max. Torque : Nm/rpm : 29/2500


Applications & advantages

• Compact footprint for confined sites, suited to material handling, loading, trenching and site preparation.
• Compatible with a range of small attachments for multifunction use; suitable for rental fleets and maintenance operations.
• Simple configuration and air-cooled engine reduce on-site maintenance complexity.

After-sales & logistics

• One-year warranty; engineers available for overseas service support.
• Flexible shipping options (sea, land, air) and minimum order 1 unit.
• Lead times: in-stock delivery within 7 days, standard production 15–20 days, customization by agreement.
