Compact backhoe loader XC8-S2570EV

electricmanoeuvrablehandling

Product overview
The XCMG XC8-S2570EV appears on the source page with two distinct product descriptions: a small hydraulic electric backhoe loader (model XC8-S2570EV) and a battery-electric rigid frame dump truck variant (model XC8-S2570EV). Both listings and their key specifications are presented below; confirm the exact configuration with the supplier before order.

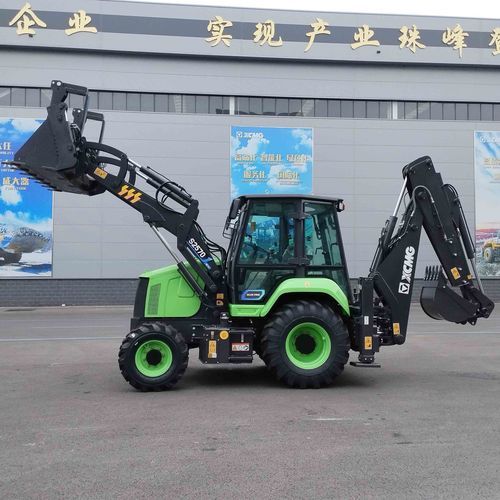

Backhoe loader — summary

• Model: XC8-S2570EV
• Type: Backhoe Loader (small hydraulic electric)
• Rated load (loader listing): 2,500 kg
• Bucket capacity: 1 m3
• Machine weight: 7,600 kg
• Dimensions (L×W×H): 7,340 × 2,350 × 3,437 mm
• Place of origin: Xuzhou, Jiangsu, China

Battery-electric rigid frame dump truck — summary

• Model: XC8-S2570EV
• Type: Battery-Electric Rigid Frame Dump Truck
• Driving mode: 4x2 (rear-wheel drive via dual electric wheel motors)
• Emission standard: Zero tailpipe emissions
• Rated payload (dump listing): 70 metric tons

Performance & powertrain

• Traction motors: Dual permanent magnet synchronous motors
• Total peak power: ~1,400 kW
• Maximum torque: ~15,000 Nm (wheel)
• Top speed (loaded): 40–45 km/h
• Maximum gradeability: ≥30%
• Battery type: Lithium Iron Phosphate (LFP)
• Battery capacity (approx.): ~700 kWh
• Drive system: AC electric drive, no traditional mechanical transmission listed

Body & dimensions (dump truck data)

• Heaped capacity (SAE 2:1): ~40 m³
• Maximum gross vehicle weight (GVW): ~120,000 kg
• Body type: Rock/Universal body with Hardox®-type liners (or equivalent)
• Dump angle: ~70°
• Body raise time: ~25 s; body lower time: ~20 s
• Overall length: ~10,600 mm; overall width: ~5,600 mm; overall height (to top of canopy): ~5,200 mm
• Wheelbase: ~4,500 mm; loading height: ~4,100 mm

Applications & recommended use

• Loader configuration: site preparation, small excavation, utility works where compact loader mobility and a 1 m³ bucket are required
• Dump truck configuration: open-pit mining, quarry hauling and heavy material transport with battery-electric operation for zero local emissions
• Evaluate configuration, payload and dimensions against project requirements before purchase

Ordering, delivery & support

• Model shown: XC8-S2570EV
• Warranty (as listed): One year
• Minimum order quantity: 1 unit
• Delivery time (as listed): In stock (within 7 days); production (15–20 days); customization (negotiated)
• Shipping options: sea freight · land freight · air freight

Notes

• The page includes conflicting product types under the same model reference. Confirm the exact specification, variant and commercial terms with the XCMG sales contact prior to ordering.
• All values marked approximate (~) are indicative; use manufacturer technical sheets for final engineering checks.
