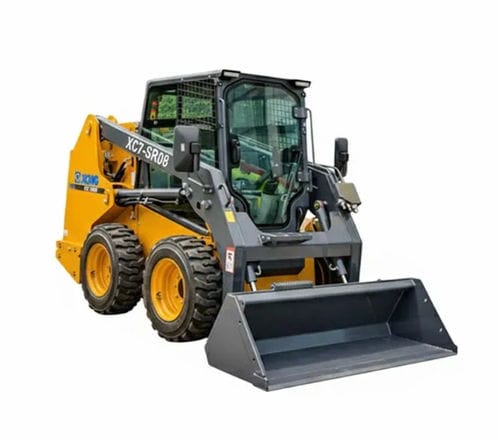

Skid steer loader XC7-SR08

Description
The XC750K (model XC7-SR08) is a medium wheeled skid steer loader manufactured by XCMG for versatile utility operations in confined and open work sites. It can be specified with an optional two-speed travel gearbox, a pressurized cabin and a fresh-air air-conditioning system. The machine uses a large-flow hydraulic system suitable for tasks such as manure clearing in cattle houses, working with loose sand, stacking forage and road cleaning.

Advantages and highlights

• Professional institute test report available
• Detailed maintenance and repair items supplied
• Factory pricing and concessions
• Official factory sourcing and reconditioning from XCMG
• Delivered in new/like-new condition
• XCMG official endorsement
• SGS third-party inspection certificate available

Summary
Dimension (L×W×H): 3750 × 2000 × 1950 mm
Type: Skid Steer Loader
Place of Origin: Xuzhou, Jiangsu, China
Model Number: XC7-SR08
Brand Name: XCMG

Product Parameters
Weight: 3200 kg
Condition: New
Moving Type: Wheel
Operating Weight: 3200 kg
Rated Power/Speed: 67 HP (50 kW) / 2300 rpm

Technical table (key parameters)
Description | Unit | XC750K
Engine — Rated power — HP(kW)/rpm — 67(50)/2300
Emission standard — — Chinese-III
Working hydraulic system — Standard flow (L/min) — 75.9
Working hydraulic system — Optional high flow (L/min) — 119.6
Working hydraulic system — System pressure (bar) — 210
Traveling system — Maximum traveling speed (km/h) — 12
Traveling system — Optional two-speed max speed (km/h) — 18
Traveling system — Tire specification — 10-16.5
Control system — Operating weight (kg) — 3200
Loading performance — Rated load (kg) — 900
Loading performance — Static tipping load (kg) — 1800
Loading performance — Breakout force (kN) — 20
Overall dimensions — Cab roof height (mm) — 1950
Overall dimensions — Length with bucket (mm) — 3330
Overall dimensions — Dumping angle (°) — 40
Overall dimensions — Maximum dumping height (mm) — 2375
Overall dimensions — Dumping range (mm) — 575
Overall dimensions — Wheelbase (mm) — 1027
Overall dimensions — Departure angle (°) — 25
Overall dimensions — Ground clearance (mm) — 185
Overall dimensions — Wheel tread (mm) — 1380
Overall dimensions — Bucket edge width (mm) — 1800
Overall dimensions — Bucket capacity (m3) — 0.45

After-sales / Service note
Engineers available for overseas service; spare parts, operation manuals and video guidance provided. Overseas service support offered (fees or terms may apply).

Technical specifications

• Model: XC7-SR08
• Brand: XCMG
• Operating weight: 3200 kg
• Rated load: 900 kg
• Rated power: 67 HP (50 kW) / 2300 rpm
• Hydraulic standard flow: 75.9 L/min; optional high flow: 119.6 L/min
• System pressure: 210 bar
• Maximum travel speed: 12 km/h (optional two-speed: 18 km/h)
• Tire specification: 10-16.5
• Bucket capacity: 0.45 m3
• Overall dimensions (L×W×H): 3750×2000×1950 mm
• Bucket width: 1800 mm
• Ground clearance: 185 mm
• Origin: Xuzhou, Jiangsu, China
