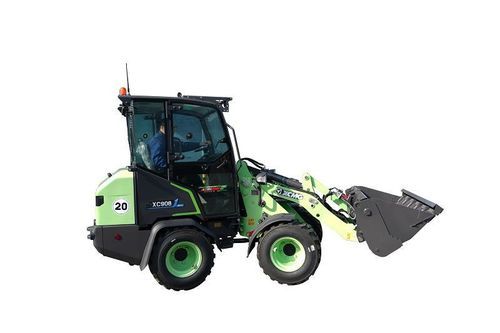

Wheeled loader XC908-EV

articulatedcompactcompact

Overview
The XCMG XC908-EV is an electric mini wheel loader engineered for compact site work, urban construction and indoor/outdoor material handling. It combines articulated steering, compact dimensions and optional lithium iron phosphate battery packs to suit operations requiring low emissions and reduced noise.

Key features

• Electric drive: permanent magnet synchronous motor with intelligent control of speed and torque and selectable power modes.
• Battery options: two lithium iron phosphate capacities available (20.711 kWh and 26.738 kWh); supports fast charging and slow home charging.
• Auxiliary energy recovery system to extend operating range.
• Robust structure: CAE-validated whole-machine frame, integrated front and rear frames and a six-link front work linkage for high breakout force and clear visibility.
• Serviceability: rear-hinged hood (up to 90°) for easy access to batteries, motor controller, fuse box, hydraulic tank and filters; 30° side-tilting cab and right-side vehicle controller for maintenance access.
• Operator comfort: panoramic cab, storage compartments, phone holder, integrated FNR handle, standard heater, adjustable seat and steering column, and optimized walkway design.
• Versatility: central articulated swing 9° plus ±40° articulated steering, short tail design for reduced turning radius, standard triple hydraulic quick-change system for attachments, optional stability module.
• Safety: electrical functional safety designed to ISO19014; high-voltage battery circuit-breaker protection; reliable braking; cab meets FOPS and ROPS; emergency stop, work safety lock and quick-change enable button.

Product Parameters (table)
Item - Unit - Parameter
Operating Weight - kg - 2835
Bucket Capacity - m3 - 0.4
Rated Load - kg - 800
Max. Breakout Force - kN - 25
Tipping Load (Straight) - kg - ≥2027
Tipping Load (Fully articulated) - kg - ≥1647
Overall length - mm - 4305
Overall length (without bucket) - mm - 3537
Distance: center of front axle to bucket pin - mm - 737
Wheelbase - mm - 1700
Length rear: axle to bumper - mm - 1081
Height to top of cab - mm - 2315
Seat height - mm - 1336
Overall working height - mm - 3231
Height to hinge pin, fully raised - mm - 2550
Bucket leveling height - mm - 2295
Dumping height - mm - 1828
Dumping reach - mm - 410
Digging depth - mm - 104
Overall width - mm - 1578
Wheel track - mm - 1015
Ground clearance - mm - 256
Turning radius (over bucket) - mm - 3419
Turning radius (over tyres) - mm - 2923
Turning radius inside of tyre - mm - 1506
Steering angle - ° - 42
Rollback angle at full lift - ° - 45
Dumping angle at full tilt - ° - 43
Rollback angle, ground - ° - 41

Additional Product Details

• Model: XC908-EV
• Brand: XCMG
• Place of origin: XUZHOU, CHINA
• Weight: 2835 kg
• Transmission: Hydraulic

Warranty & Delivery

• Warranty: One Year
• After-sales service: Engineers available for overseas field service
• Minimum Order Quantity: 1 Unit
• Delivery Time: In stock (within 7 days); Production (15–20 days); Customization (negotiated)

Technical specifications

• Model: XC908-EV
• Brand: XCMG
• Operating weight: 2835 kg
• Rated load: 800 kg
• Bucket capacity: 0.4 m³
• Max breakout force: 25 kN
• Overall length (without bucket): 3537 mm
• Overall length: 4305 mm
• Overall width: 1578 mm
• Overall working height: 3231 mm
• Height to top of cab: 2315 mm
• Wheelbase: 1700 mm
• Ground clearance: 256 mm
• Turning radius (over bucket): 3419 mm
• Steering angle: 42°
• Battery options: 20.711 kWh / 26.738 kWh (lithium iron phosphate)
• Drive motor: Permanent magnet synchronous motor
• Transmission: Hydraulic
• Safety compliance: Electrical functional safety per ISO19014; cab meets FOPS and ROPS
• Attachments: Triple hydraulic quick-change; optional stability module
