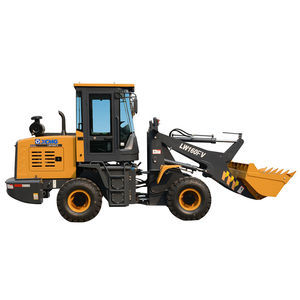

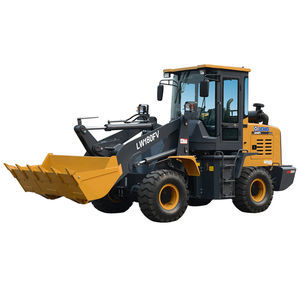

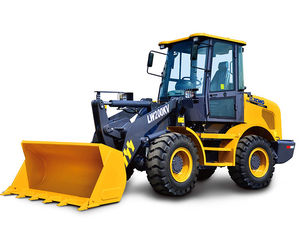

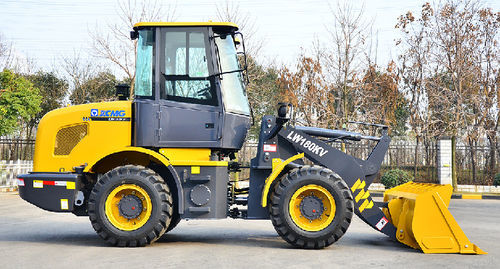

Rubber-tired loader LW180KV

articulatedlargeoutdoor

Overview
XCMG LW180KV is a self‑propelled front loader mounted on the chassis with an articulated boom, link mechanism and loading bucket. It is engineered for shoveling, transporting, unloading and leveling. With appropriate attachments it can perform bulldozing, lifting and loading/unloading of timber and steel pipes.

Key features

• Fast cycle: total time of three devices 11 s; travel speed up to 15 km/h.
• Flexible steering: pilot‑flow amplification steering for precise, efficient turning.
• Efficient powertrain: dual‑pump arrangement for effective hydraulic power use.
• Robust structure: heavy‑load design, high anti‑torque coefficient, extended body and optimized load distribution for heavy work; enlarged maintenance space.
• Long service life: reduced wear parts, durable blade and bucket teeth, protected pipelines with bushes to limit leakage and extend service intervals.

Product details / Quick summary

• Rated load: 1,800 kg
• Dimension (L×B×H): 6030 × 2060 × 2950 mm
• Type: front loader
• Place of origin: Xuzhou, Jiangsu, China
• Model number: LW180KV
• Brand name: XCMG
• Certification: Xuzhou, Jiangsu, China

Specifications

• Operating weight: 5,400 kg
• Rated power: 58.8 kW (58.8/2100 kW/rpm)
• Rated bucket capacity: 0.9–1.1 m³
• Bucket capacity range (option): 0.5–2 m³
• Wheel base: 2,200 mm
• Max. breakout force: 55 kN
• Max. horse power (as listed): 245

Technical parameters (table)
Item | Parameters | Unit
Rated operating load | 1800 | kg
Bucket capacity | 0.9-1.1 | m3
Operating weight | 5400 | kg
Wheel base | 2200 | mm
Lifting time of boom | ≤6.5 | s
Tyre size | 16/17-20 | (size)
Model | WP13G |
Rated power/speed | 58.8/2100 | kw/rpm
Gradeability | 25 | °
Max. breakout force | 55 | kN
Max. horse power | 245 | kn
Articulation angle | ±38 | °
Total hydraulic cycle time | 10 | s
Overall machine dimension L*M*H | 5520*1960*2850 | mm

Warranty and After-sales

• Warranty: One year
• After-sales service: engineers available for overseas service.

Ordering & delivery

• Min order quantity: 1 unit
• Delivery time: In stock (within 7 days); Production (15–20 days); Customization (negotiated)
• Shipping support: Sea freight · Land freight · Air freight

Characteristics / technical specifications

• Model: LW180KV
• Brand: XCMG
• Rated operating load: 1,800 kg
• Machine / Operating weight: 5,400 kg
• Rated bucket capacity: 0.9–1.1 m³
• Bucket capacity range (option): 0.5–2 m³
• Rated power: 58.8 kW (58.8/2100 kW/rpm)
• Max breakout force: 55 kN
• Wheel base: 2,200 mm
• Tyre size: 16/17-20
• Overall dimension (L×B×H): 5520 × 1960 × 2850 mm
• Total hydraulic cycle time: 10 s
