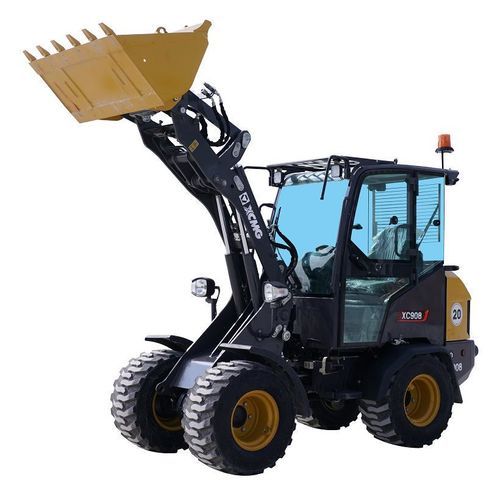

Wheeled loader XC908

<b>Overview</b><br><ul><li>Model: XC908. Compact mini wheel loader engineered for comfort, maintainability and reliability with hydrostatic transmission technology.</li><li>Type: wheel loader with short-tail design, central articulated swing structure (9°) and ±40° articulated steering for a small turning radius.</li><li>Warranty: One year.</li><li>After-sales: Engineers available to service machinery overseas.</li><li>Min Order Quantity: 1 unit.</li><li>Delivery Time: In stock (within 7 days); Production (15–20 days); Customization (delivery time negotiated).</li><li>Shipping support: Sea freight · Land freight · Air freight.</li></ul><br><br><b>Key product features</b><br><ul><li>Advanced hydrostatic transmission: DA mode controls travel pump displacement in real time; HA control switches motor displacement to ensure traction under variable loads.</li><li>Convenient operation: switch between bucket linkage and third linkage via an operation button to adapt to different implements.</li><li>Product reliability: main structural components CAE-simulated; integrated front and rear frame; forward six-link working linkage for strong lifting power and smooth movement.</li><li>Easy maintenance: rear-flip engine hood (>80° opening) for access to engine, radiator, hydraulic oil tank and filters; side-tilting cab (30°) for inspection and repair; accessible controller and fuse box placements.</li><li>Comfortable operation: panoramic cab, storage boxes, mobile phone holder, FNR integrated handle, standard heater, adjustable seat and steering column for improved driving experience.</li><li>Flexibility & versatility: standard triple hydraulic quick-coupler structure for attachments; optional stability module.</li><li>Safe design: reliable braking system; cab meets FOPS and ROPS standards; emergency stop switch, work safety lock and quick-coupler cylinder enable button to reduce misuse risks.</li></ul><br><br><b>Dimensions & mobility (selected)</b><br>Overall length: 4380 mm<br>Total length without bucket: 3740 mm<br>Overall width without bucket: 1570 mm<br>Overall height: 2310 mm<br>Wheel base: 1700 mm<br>Rear overhang: 1081 mm<br>Ground clearance: 236 mm<br>Maximum radius outside: 3329 mm<br>Radius on the outer edge: 2875 mm<br>Inside radius: 1495 mm<br>Articulation angle: 40°<br>Dumping height: 1828 mm<br>Dumping reach: 410 mm<br>Scraping depth: 102 mm<br>Operating weight: 2980 kg<br>Bucket capacity: 0.37 m³<br><br><br><b>Engine & drive</b><br>Max. engine output: 18.2 kW @ 2550 rpm<br>Transmission / Drive system: Hydrostatic<br>Travel speed: 20/4 km/h (as listed)<br>Max articulation: 40°<br>Max oscillation: 9°<br><br><br><b>Main performances (selected)</b><br>Max. digging force (bucket): 22 kN<br>Max. traction: 16 kN<br>Max. lifting height lifting capacity: 1800 kg<br>Bucket tipping loads (straight): 1800 kg<br>Bucket tipping loads (full turn): 1600 kg<br><br><br><b>Basic product identifiers</b><br><ul><li>Brand Name: XCMG</li><li>Model Number: XC908</li><li>Place of Origin: XUZHOU, CHINA</li><li>Rated Load: <1 t</li></ul><br><br><b>Technical specifications</b><br><ul><li>Model: XC908</li><li>Operating weight: 2980 kg</li><li>Bucket capacity: 0.37 m³</li><li>Drive type / drive system: Hydrostatic</li><li>Max. engine output: 18.2 kW @ 2550 rpm</li><li>Max. digging force (bucket): 22 kN</li><li>Max. traction: 16 kN</li><li>Max. lifting height lifting capacity: 1800 kg</li><li>Bucket tipping loads (straight): 1800 kg</li><li>Bucket tipping loads (full turn): 1600 kg</li><li>Travel speed: 20/4 km/h</li><li>Wheel base: 1700 mm</li><li>Overall length: 4380 mm (overall); 3740 mm (without bucket)</li><li>Overall width (without bucket): 1570 mm</li><li>Overall height: 2310 mm</li><li>Ground clearance: 236 mm</li><li>Dumping height: 1828 mm; Dumping reach: 410 mm</li><li>Scraping depth: 102 mm</li><li>Maximum radius outside: 3329 mm; Radius on outer edge: 2875 mm; Inside radius: 1495 mm</li><li>Articulation angle: 40°; Max oscillation: 9°</li></ul>
