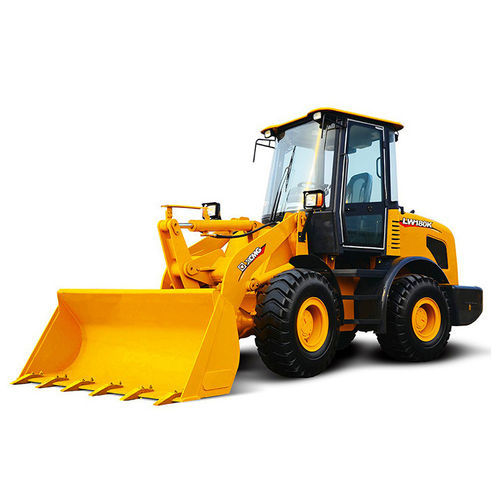

Wheeled loader LW180K

XCMG official LW180K 1.6ton mini pay loader with CE Certificate Performance Highlights: - The extended wheelbase (2,300mm) design adapts to diversified super-heavy working conditions, with industry-leading stability. - Powerful digging force (breakout force ≥58kN) and strong breaking force allow easy handling of diversified materials. - Industry’s best traveling speed (26km/h), featuring high rapidness and efficiency. - Diversified dumping heights (2,650~2,970mm) are available to meet operational needs in various applications. Summary - Rated Load: 1800kg - Dimension (L*W*H): 5850*2060*2950mm - Type: front loader - Place of Origin: Xuzhou, Jiangsu, China - Model Number: LW180K - Brand Name: XCMG - Certification: CE Specifications - Weight: 4950kg - Engine Brand: YUCHAI - Rated Load: 1-2 ton - Bucket Capacity: 0.5 - 2m³ - Machine Weight: 6000kg - Wheel base: 2300mm - Max. breakout force: 58kN - Rated power: 58KW - Rated bucket capacity: 1.0m³ Technical Specifications Table - Rated operating load: 1800kg - Bucket capacity: 0.9~1.1m³ - Machine weight: 6200kg - Dump clearance at maximum lift: 2650~2970mm - Reach at maximum lift: 900~1000mm - Wheel base: 2300mm - Tread: 1550mm - Max. breakout force: ≥58kN - Hydraulic cycle time-raise: 5s - Total hydraulic cycle time: ≤8.5s - Min. turning radius over tyres: 4470mm - Articulation angle: 35° - Gradeability: 28° - Tyre size: 16/70-20 - Overall machine dimension L×W×H: 5980×2060×2950mm - Engine Model: YC4D80-T20 - Rated Power/Speed: 58/2400 Other Features - Engine: YUCHAI - Warranty: One Year - After-sales Service: Engineers available to service machinery overseas - Minimum Order Quantity: 1 Unit - Delivery Time: In Stock (Within 7 days), Production (Within 15 to 20 days), Customization (negotiated delivery time) - Shipping: Supports Sea freight, Land freight, Air freight - Payment Methods: Multiple options supported Technical Characteristics / Specifications - Rated Load: 1800kg - Bucket Capacity: 0.9~1.1 m³ - Machine Weight: 6200kg - Dump Clearance at Maximum Lift: 2650~2970mm - Reach at Maximum Lift: 900~1000mm - Wheel Base: 2300mm - Tread: 1550mm - Max. Breakout Force: ≥58kN - Hydraulic Cycle Time (Raise): 5s - Total Hydraulic Cycle Time: ≤8.5s - Min. Turning Radius Over Tyres: 4470mm - Articulation Angle: 35° - Gradeability: 28° - Tyre Size: 16/70-20 - Overall Machine Dimension (L×W×H): 5980×2060×2950mm - Engine Model: YC4D80-T20 - Rated Power/Speed: 58kW/2400rpm
