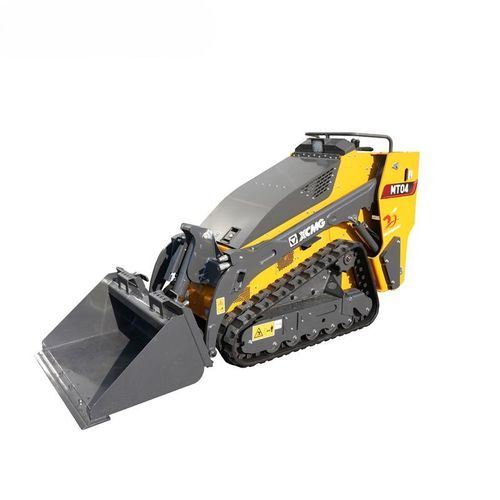

Diesel compact track loader MT04

Diesel compact track loader - MT04 - XCMG
Diesel compact track loader - MT04 - XCMG
Diesel compact track loader - MT04 - XCMG - image - 2
Diesel compact track loader - MT04 - XCMG - image - 3
Diesel compact track loader - MT04 - XCMG - image - 4
Diesel compact track loader - MT04 - XCMG - image - 5
Add to favorites
Compare this product
Go to the XCMG website for more information

Characteristics

Motor type
diesel
Lifting capacity

400 kg
(882 lb)

Engine power

18.1 kW
(24.61 hp)

Operating weight

1,580 kg
(3,483.3 lb)

Description

Product overview
  • Model: MT04
  • Brand: XCMG
  • Type: Skid steer loader
  • Place of origin: Jiangsu, China
  • Rated load: 400 kg
  • Operating weight: 1580 kg
  • Bucket capacity: 0.17 m³
  • Engine: Kubota D1105, 18.1 kW, air-cooled
  • Emission standard: T4F
  • Warranty: One year
  • Min order quantity: 1 unit
  • Delivery time: In stock within 7 days; production 15–20 days; customization: negotiated


Applications
  • Small earthmoving and backfilling in confined sites
  • Material handling and site clean-up
  • Landscaping, municipal maintenance and agriculture


Key specifications (summary)
  • Rated load: 400 kg
  • Operating weight: 1580 kg
  • Bucket capacity: 0.17 m³
  • Engine power: 18.1 kW (Kubota D1105)
  • Max. digging force: 7.8 kN
  • Max. traction force: 11 kN


Detailed technical data (MT04)
  • Rated load: 400 kg
  • Tip load: 1143 kg
  • Operating weight: 1580 kg
  • Max. digging force: 7.8 kN
  • Max. traction force: 11 kN
  • Engine model: D1105
  • Engine rated power: 18.1 kW
  • Engine manufacturer: Kubota
  • Emission standard: T4F
  • Rated speed: 3000 rpm
  • Cooling method: Air-cooled
  • Cylinder number: 3
  • Cylinder bore: 78 mm
  • Stroke: 78.4 mm
  • Displacement: 1.123 L
  • Max. torque: 71.5 Nm / 2200 rpm


Ordering & after-sales
  • Warranty: One year
  • After-sales service: Engineers available for overseas service
  • Spare parts and technical support available on request


Notes
  • Type: Skid steer loader
  • Place of origin: Jiangsu, China
  • Core component: Engine
