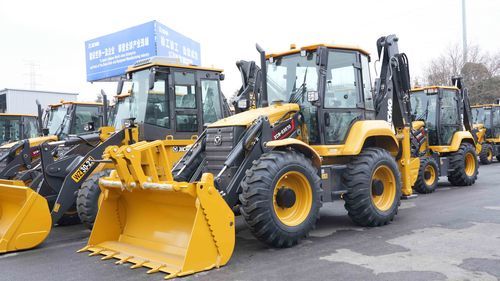

Multi-function backhoe loader XC8-S3570

dieselergonomichandling

Overview

• Dual-function backhoe loader integrating front loader and rear excavator for site preparation, trenching and material handling in construction and agriculture.
• Engine: 73.5 kW YUCHAI YC4DK100-T304 meeting China III emissions, delivering high torque for heavy-duty tasks.
• Advanced hydraulic system provides smooth, precise and responsive control for digging, trenching and lifting operations.
• Operator cabin designed for visibility and ergonomics with adjustable seat and intuitive controls.

Key Attributes

• Model: XC8-S3570
• Brand: XCMG
• Type: Backhoe Loader
• Rated Load: 3500 kg
• Operating weight: 9750±200 kg
• Dimensions (L×W×H): 7340×2350×3437 mm
• Warranty: One Year
• Min Order Quantity: 1 Unit
• Delivery Time: In Stock (Within 7 days); Production (15–20 days); Customization (negotiated delivery time)

Technical Parameters
Operating weight: 9750±200 kg
Alternative listed weight: 7600.000 kg
Rated load: 3500 kg
Rated power: 73.5 kW
Rated speed: 2200 r/min
Max torque: 400 N·m
Displacement: 3.621 L
Engine model: YC4DK100-T304 (Manufacturer: YUCHAI)
Emission standard: China III
Max driving speed: 38 km/h
Reverse gear speeds: 6 km/h (Gear 1), 10 km/h (Gear 2)
Max tractive force: ≥90 kN
Max gradeability: ≥20°

Additional Notes

• Comparison entry indicates Rated Load 3500 kg and dimensions 7340×2350×3437 mm.
• After-sales: engineers available for overseas service; on-site service arrangements can be provided.

Specifications

• Model Number: XC8-S3570
• Type: Backhoe Loader (dual-purpose: loader + excavator)
• Engine model: YC4DK100-T304 (YUCHAI)
• Rated power: 73.5 kW
• Operating weight: 9750±200 kg
• Rated load: 3500 kg
• Dimensions (L×W×H): 7340×2350×3437 mm
