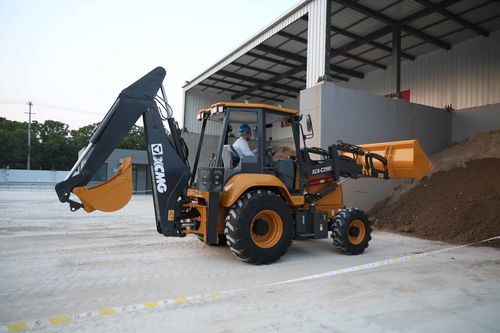

Multi-function backhoe loader XC8-C2560

compactdieselergonomic

Product overview
The XC8-C2560 backhoe loader by XCMG is a compact, multi-purpose machine developed for versatile excavation and loading tasks. Designed with a compact layout and precise controls, it improves maintainability and operational adaptability compared with previous generations, with attention to reliability, safety and operator comfort.

Working tools and attachments

• Six-in-one bucket
• Closed sweeper
• Fork
• Boom
• Bevel sweeper
• Wood grasping pliers
• Snow pusher
• Tree mover
• Manhole cover miller
• Hydraulic quick-change at the loading end
• Auger
• Hammer
• Scarifier
• Hydraulic quick-change at the excavation end

Structure and design highlights
The integral frame is manufactured from high-strength steel plates to reduce deformation and irregular welds while reinforcing key load-bearing areas, increasing resistance to torque and impact under complex working conditions. The canopy and hood are proprietary designs coordinated with XCMG styling to improve machine identification and service access.

Commercial / supply information

• Model: XC8-C2560
• Warranty: One Year
• After-sales service: Overseas service engineers available; online support (samples, technical specifications, operation manuals, spare parts procurement); video support (application guidance, troubleshooting, maintenance); global after-sales team (additional service fees may apply if not specified in the sales contract)
• Minimum Order Quantity: 1 Unit
• Delivery Time: In Stock (within 7 days); Production (15–20 days); Customization (delivery time by negotiation)

Summary

• Rated Load: 2500 kg
• Dimension (L×W×H): 7340×2350×3437 mm
• Type: Backhoe Loader
• Place of Origin: Xuzhou, Jiangsu, China
• Model Number: XC8-C2560
• Brand Name: XCMG

Specifications

• Machine / Operating weight: 7600 kg
• Bucket capacity: 1.0 m3

Technical specifications

• Overall length: 7340 mm
• Overall width: 2350 mm
• Overall height: 3437 mm
• Operating weight / Machine weight: 7600 kg
• Bucket rated capacity: 1.0 m3
• Rated operating load: 2500 kg
• Max driving speed: 38 km/h
• Engine rated power / rated speed: 74 kW / 2200 r/min
• Max gradeability: ≥20 %
• Turning radius: 4400 mm
• Wheel base: 2180 mm
• Max tractive force: ≥70 kN
• Max breakout force (loader): 66 kN
• Max dumping height: 2770 mm
• Max dumping range: 831 mm
• System pressure: 24 MPa
• Backhoe bucket rated capacity: 0.20 m3
• Max digging radius: 5426 mm
• Max digging depth: 4440 mm
• Max digging force (backhoe): 63 kN
